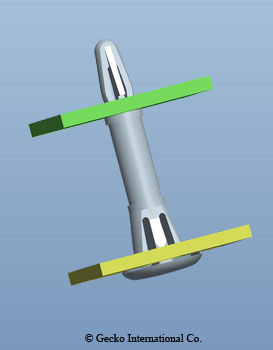

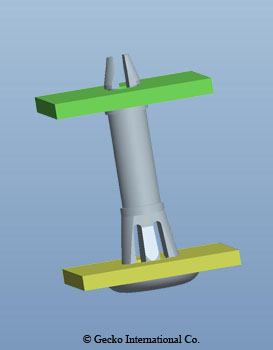

GLCBSC2, GLCBSC8, GLCBSC9
PCB Support - Spacer - Locking/Non Locking Bayonet, Reverse Locking Support, Locking Two Prong, Push Spacer
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A |

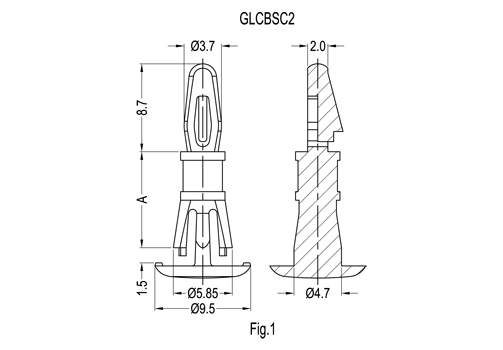

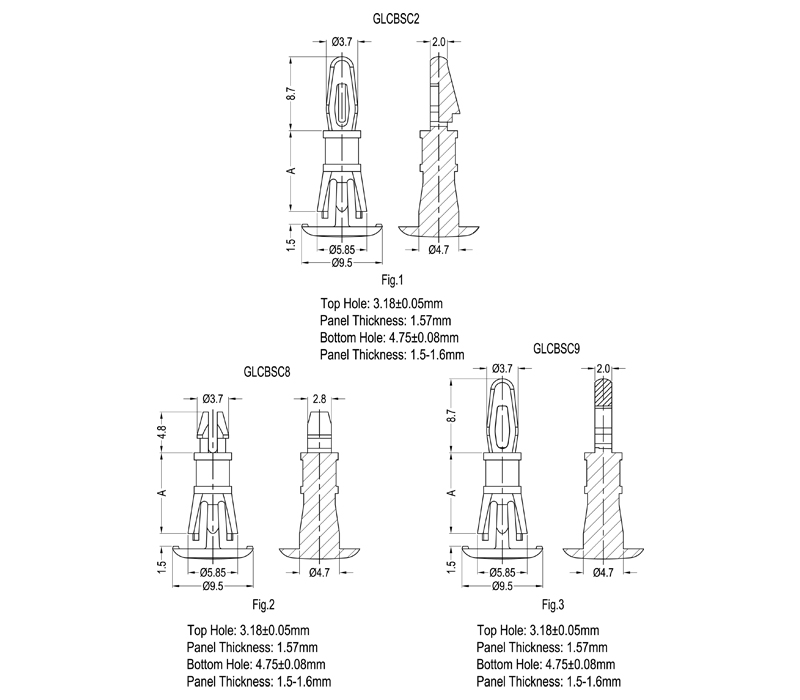

FIG |
Top Hole | Bottom Hole |
Top Panel Thickness | Bottom Panel Thickness |
Packing Unit |
PDF |
3D |
| 40618 | GLCBSC2-4-66 |
RLCBSR-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41976 | GLCBSC2-4-V0 |
RLCBSR-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40619 | GLCBSC2-4-66B |
RLCBSR-4-01BK |
PA66 UL94V2 |
Black |
6.4 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40620 | GLCBSC2-5-66 |
RLCBSR-5-01 |
PA66 UL94V2 |
Natural |
7.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41977 | GLCBSC2-5-V0 |
RLCBSR-5-19 |
PA66 UL94V0 |
Natural |
7.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 43134 | GLCBSC2-5-66B |
RLCBSR-5-01BK |
PA66 UL94V2 |
Black |
7.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40621 | GLCBSC2-6-66 |
RLCBSR-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41978 | GLCBSC2-6-V0 |
RLCBSR-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41422 | GLCBSC2-6-66B |
RLCBSR-6-01BK |
PA66 UL94V2 |
Black |
9.5 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 42438 | GLCBSC2-6-66R |
- |
PA46 UL94V2 |
Red |
9.5 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40622 | GLCBSC2-7-66 |
RLCBSR-7-01 |
PA66 UL94V2 |
Natural |
11.1 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41979 | GLCBSC2-7-V0 |
RLCBSR-7-19 |
PA66 UL94V0 |
Natural |
11.1 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 43135 | GLCBSC2-7-66B |
RLCBSR-7-01BK |
PA66 UL94V2 |
Black |
11.1 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40623 | GLCBSC2-8-66 |
RLCBSR-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41980 | GLCBSC2-8-V0 |
RLCBSR-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40624 | GLCBSC2-8-66B |
RLCBSR-8-01BK |
PA66 UL94V2 |
Black |
12.7 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40625 | GLCBSC2-9-66 |
RLCBSR-9-01 |
PA66 UL94V2 |
Natural |
14.3 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41981 | GLCBSC2-9-V0 |
RLCBSR-9-19 |
PA66 UL94V0 |
Natural |
14.3 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 43136 | GLCBSC2-9-66B |
RLCBSR-9-01BK |
PA66 UL94V2 |
Black |
14.3 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 40626 | GLCBSC2-10-66 |
RLCBSR-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41982 | GLCBSC2-10-V0 |
RLCBSR-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 43137 | GLCBSC2-10-66B |
RLCBSR-10-01BK |
PA66 UL94V2 |
Black |
15.9 |
1 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41211 | GLCBSC8-4-66 |
RLCBSPR-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41778 | GLCBSC8-4-V0 |
RLCBSPR-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41411 | GLCBSC8-4-66B |
RLCBSPR-4-01BK |
PA66 UL94V2 |
Black |
6.4 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41212 | GLCBSC8-5-66 |
RLCBSPR-5-01 |
PA66 UL94V2 |
Natural |
7.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41779 | GLCBSC8-5-V0 |
RLCBSPR-5-19 |
PA66 UL94V0 |
Natural |
7.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41412 | GLCBSC8-5-66B |
RLCBSPR-5-01BK |
PA66 UL94V2 |
Black |
7.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41213 | GLCBSC8-6-66 |
RLCBSPR-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41780 | GLCBSC8-6-V0 |
RLCBSPR-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41413 | GLCBSC8-6-66B |
RLCBSPR-6-01BK |
PA66 UL94V2 |
Black |
9.5 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41214 | GLCBSC8-7-66 |
RLCBSPR-7-01 |
PA66 UL94V2 |
Natural |
11.1 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41781 | GLCBSC8-7-V0 |
RLCBSPR-7-19 |
PA66 UL94V0 |
Natural |
11.1 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41414 | GLCBSC8-7-66B |
RLCBSPR-7-01BK |
PA66 UL94V2 |
Black |
11.1 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41215 | GLCBSC8-8-66 |
RLCBSPR-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41782 | GLCBSC8-8-V0 |
RLCBSPR-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41415 | GLCBSC8-8-66B |
RLCBSPR-8-01BK |
PA66 UL94V2 |
Black |
12.7 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41216 | GLCBSC8-9-66 |
RLCBSPR-9-01 |
PA66 UL94V2 |
Natural |
14.3 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41783 | GLCBSC8-9-V0 |
RLCBSPR-9-19 |
PA66 UL94V0 |
Natural |
14.3 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41416 | GLCBSC8-9-66B |
RLCBSPR-9-01BK |
PA66 UL94V2 |
Black |
14.3 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41217 | GLCBSC8-10-66 |
RLCBSPR-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41784 | GLCBSC8-10-V0 |
RLCBSPR-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41417 | GLCBSC8-10-66B |
RLCBSPR-10-01BK |
PA66 UL94V2 |
Black |
15.9 |
2 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41218 | GLCBSC9-4-66 |
RCBSR-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41785 | GLCBSC9-4-V0 |
RCBSR-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41219 | GLCBSC9-5-66 |
RCBSR-5-01 |
PA66 UL94V2 |
Natural |
7.9 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41786 | GLCBSC9-5-V0 |
RCBSR-5-19 |
PA66 UL94V0 |
Natural |
7.9 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41220 | GLCBSC9-6-66 |
RCBSR-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41787 | GLCBSC9-6-V0 |
RCBSR-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41221 | GLCBSC9-7-66 |
RCBSR-7-01 |
PA66 UL94V2 |
Natural |
11.1 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41788 | GLCBSC9-7-V0 |
RCBSR-7-19 |
PA66 UL94V0 |
Natural |
11.1 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41222 | GLCBSC9-8-66 |
RCBSR-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41789 | GLCBSC9-8-V0 |
RCBSR-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41223 | GLCBSC9-9-66 |
RCBSR-9-01 |
PA66 UL94V2 |
Natural |
14.3 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41790 | GLCBSC9-9-V0 |
RCBSR-9-19 |
PA66 UL94V0 |
Natural |
14.3 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41224 | GLCBSC9-10-66 |
RCBSR-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
| 41791 | GLCBSC9-10-V0 |
RCBSR-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
3 |
3.18 +/- 0.05 | 4.75 +/- 0.08 |
1.57 | 1.5-1.6 |
1000 |
|
|
