GEHCBS
PCB-Halterung - Abstandshalter, Spreizanker Verriegelnd, Eckhalterung, Zum Einrasten
| P/N. | Artikel-Nr. | Cross-Ref. |
Material |
Farbe |
A | B |

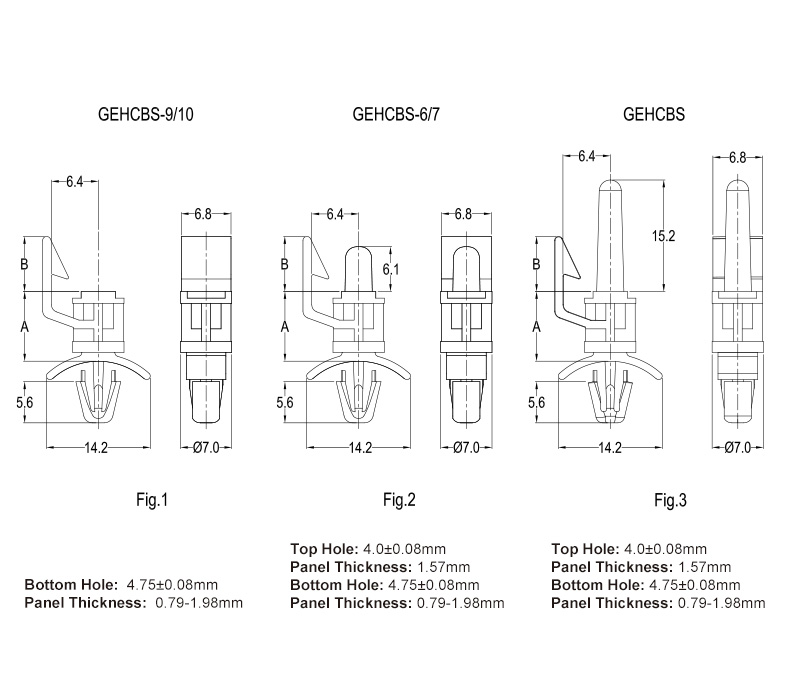

FIG |
Bohrung Oben | Bohrung Unten |
Leiterplatte Oben | Leiterplatte Unten |
VPE |
PDF |
3D |
| 43779 | GEHCBS-6-5-66 |
EHCBS-6-5-01 |
PA66 UL94V2 |
Natur |
7.9 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43780 | GEHCBS-6-5-V0 |
EHCBS-6-5-19 |
PA66 UL94V0 |
Natur |
7.9 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43787 | GEHCBS-6-6-66 |
EHCBS-6-6-01 |
PA66 UL94V2 |
Natur |
9.5 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43788 | GEHCBS-6-6-V0 |
EHCBS-6-6-19 |
PA66 UL94V0 |
Natur |
9.5 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43789 | GEHCBS-6-8-66 |
EHCBS-6-8-01 |
PA66 UL94V2 |
Natur |
12.7 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43790 | GEHCBS-6-8-V0 |
EHCBS-6-8-19 |
PA66 UL94V0 |
Natur |
12.7 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43791 | GEHCBS-6-14-66 |
EHCBS-6-14-01 |
PA66 UL94V2 |
Natur |
22.2 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43792 | GEHCBS-6-14-V0 |
EHCBS-6-14-19 |
PA66 UL94V0 |
Natur |
22.2 | 6.1 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43799 | GEHCBS-7-5-66 |
EHCBS-7-5-01 |
PA66 UL94V2 |
Natur |
7.9 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43800 | GEHCBS-7-5-V0 |
EHCBS-7-5-19 |
PA66 UL94V0 |
Natur |
7.9 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 42053 | GEHCBS-7-6-66 |
EHCBS-7-6-01 |
PA66 UL94V2 |
Natur |
9.5 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 42077 | GEHCBS-7-6-V0 |
EHCBS-7-6-19 |
PA66 UL94V0 |
Natur |
9.5 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43589 | GEHCBS-7-8-66 |
EHCBS-7-8-01 |
PA66 UL94V2 |
Natur |
12.7 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43593 | GEHCBS-7-8-V0 |
EHCBS-7-8-19 |
PA66 UL94V0 |
Natur |
12.7 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 42357 | GEHCBS-7-14-66 |
EHCBS-7-14-01 |
PA66 UL94V2 |
Natur |
22.2 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 42358 | GEHCBS-7-14-V0 |
EHCBS-7-14-19 |
PA66 UL94V0 |
Natur |
22.2 | 7.5 |
1 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43781 | GEHCBS-9-5-66 |
EHCBS-9-5-01 |
PA66 UL94V2 |
Natur |
7.9 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43782 | GEHCBS-9-5-V0 |
EHCBS-9-5-19 |
PA66 UL94V0 |
Natur |
7.9 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43793 | GEHCBS-9-6-66 |
EHCBS-9-6-01 |
PA66 UL94V2 |
Natur |
9.5 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43794 | GEHCBS-9-6-V0 |
EHCBS-9-6-19 |
PA66 UL94V0 |
Natur |
9.5 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43795 | GEHCBS-9-8-66 |
EHCBS-9-8-01 |
PA66 UL94V2 |
Natur |
12.7 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43796 | GEHCBS-9-8-V0 |
EHCBS-9-8-19 |
PA66 UL94V0 |
Natur |
12.7 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43797 | GEHCBS-9-14-66 |
EHCBS-9-14-01 |
PA66 UL94V2 |
Natur |
22.2 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43798 | GEHCBS-9-14-V0 |
EHCBS-9-14-19 |
PA66 UL94V0 |
Natur |
22.2 | 6.1 |
2 |
- | 4.75 +/- 0.08 |
- | 0.79-1.98 |
1000 |
|
|
| 43931 | GEHCBS-4-66 |
EHCBS-4-01 |
PA66 UL94V2 |
Natur |
6.4 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43937 | GEHCBS-4-V0 |
EHCBS-4-19 |
PA66 UL94V0 |
Natur |
6.4 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43932 | GEHCBS-5-66 |
EHCBS-5-01 |
PA66 UL94V2 |
Natur |
7.9 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43938 | GEHCBS-5-V0 |
EHCBS-5-19 |
PA66 UL94V0 |
Natur |
7.9 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43917 | GEHCBS-6-66 |
EHCBS-6-01 |
PA66 UL94V2 |
Natur |
9.5 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43929 | GEHCBS-6-V0 |
EHCBS-6-19 |
PA66 UL94V0 |
Natur |
9.5 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43933 | GEHCBS-8-66 |
EHCBS-8-01 |
PA66 UL94V2 |
Natur |
12.7 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43939 | GEHCBS-8-V0 |
EHCBS-8-19 |
PA66 UL94V0 |
Natur |
12.7 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43934 | GEHCBS-10-66 |
EHCBS-10-01 |
PA66 UL94V2 |
Natur |
15.9 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43940 | GEHCBS-10-V0 |
EHCBS-10-19 |
PA66 UL94V0 |
Natur |
15.9 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43935 | GEHCBS-12-66 |
EHCBS-12-01 |
PA66 UL94V2 |
Natur |
19.1 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43941 | GEHCBS-12-V0 |
EHCBS-12-19 |
PA66 UL94V0 |
Natur |
19.1 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43936 | GEHCBS-14-66 |
EHCBS-14-01 |
PA66 UL94V2 |
Natur |
22.2 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43942 | GEHCBS-14-V0 |
EHCBS-14-19 |
PA66 UL94V0 |
Natur |
22.2 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43918 | GEHCBS-16-66 |
EHCBS-16-01 |
PA66 UL94V2 |
Natur |
25.4 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
| 43930 | GEHCBS-16-V0 |
EHCBS-16-19 |
PA66 UL94V0 |
Natur |
25.4 | 7.5 |
3 |
4.0 +/- 0.08 | 4.75 +/- 0.08 |
1.57 | 0.79-1.98 |
1000 |
|
|
