GRS30-60, GRS3053SP
Push-In Rivet, Panel Thickness 1.2 - 8.0, PA6 UL94V2
| P/N. | N° D'Article | Réf. Croisée |
Matériau |
Couleur |
A | B | C | D | E | F | G |

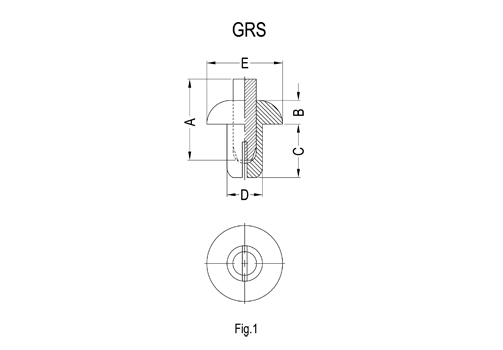

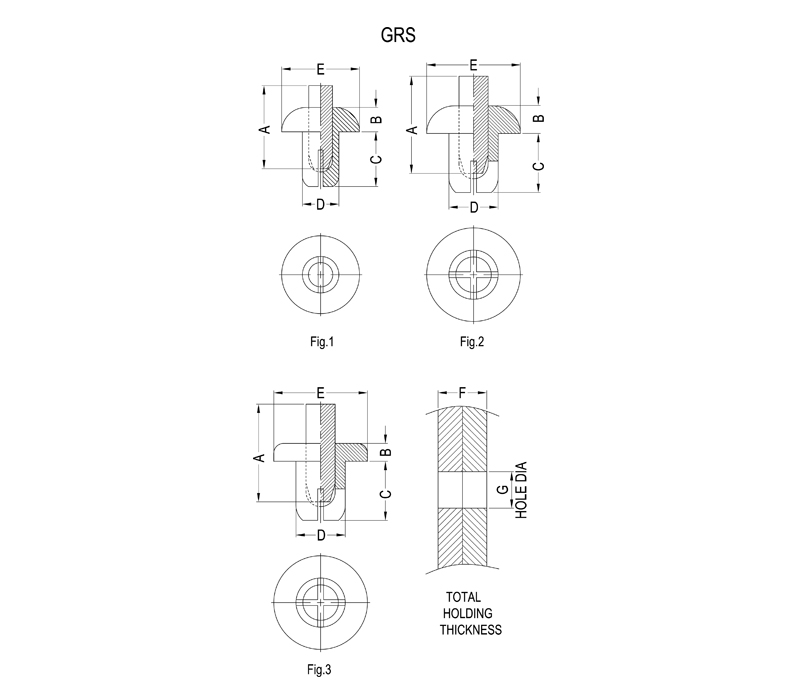

FIG |
Unité |
PDF |
3D |
| 20318 | GRS3045B |
PPR-3045B |
PA6 UL94V2 |
Noir |
8.9 | 2.0 | 4.5 | 3.0 | 5.8 | 2.0-3.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20319 | GRS3045W |
PPR-3045W |
PA6 UL94V2 |
Blanc |
8.9 | 2.0 | 4.5 | 3.0 | 5.8 | 2.0-3.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20320 | GRS3055B |
PPR-3055B |
PA6 UL94V2 |
Noir |
8.9 | 2.0 | 5.5 | 3.0 | 5.8 | 3.0-4.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20321 | GRS3055W |
PPR-3055W |
PA6 UL94V2 |
Blanc |
8.9 | 2.0 | 5.5 | 3.0 | 5.8 | 3.0-4.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20322 | GRS4050B |
PPR-4050B |
PA6 UL94V2 |
Noir |
9.2 | 2.2 | 5.0 | 4.0 | 8.0 | 2.5-3.5 | 4.1-4.2 |
2 |
1000 |
|
|
| 20323 | GRS4050W |
PPR-4050W |
PA6 UL94V2 |
Blanc |
9.2 | 2.2 | 5.0 | 4.0 | 8.0 | 2.5-3.5 | 4.1-4.2 |
2 |
1000 |
|
|
| 20324 | GRS4060B |
PPR-4060B |
PA6 UL94V2 |
Noir |
9.2 | 2.2 | 6.0 | 4.0 | 8.0 | 3.5-4.5 | 4.1-4.2 |
2 |
1000 |
|
|
| 20325 | GRS4060W |
PPR-4060W |
PA6 UL94V2 |
Blanc |
9.2 | 2.2 | 6.0 | 4.0 | 8.0 | 3.5-4.5 | 4.1-4.2 |
2 |
1000 |
|
|
| 20326 | GRS4850B |
PPR-4850B |
PA6 UL94V2 |
Noir |
11.0 | 3.2 | 5.0 | 4.8 | 9.9 | 1.2-3.0 | 4.8-4.9 |
2 |
1000 |
|
|
| 20327 | GRS4850W |
PPR-4850W |
PA6 UL94V2 |
Blanc |
11.0 | 3.2 | 5.0 | 4.8 | 9.9 | 1.2-3.0 | 4.8-4.9 |
2 |
1000 |
|
|
| 20328 | GRS5050B |
PPR-5050B |
PA6 UL94V2 |
Noir |
9.6 | 2.8 | 5.0 | 5.0 | 9.5 | 2.0-3.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20330 | GRS5050W |
PPR-5050W |
PA6 UL94V2 |
Blanc |
9.6 | 2.8 | 5.0 | 5.0 | 9.5 | 2.0-3.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20332 | GRS5060B |
PPR-5060B |
PA6 UL94V2 |
Noir |
9.6 | 2.8 | 6.0 | 5.0 | 9.5 | 3.0-4.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20334 | GRS5060W |
PPR-5060W |
PA6 UL94V2 |
Blanc |
9.6 | 2.8 | 6.0 | 5.0 | 9.5 | 3.0-4.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20335 | GRS5070B |
PPR-5070B |
PA6 UL94V2 |
Noir |
11.4 | 2.8 | 7.0 | 5.0 | 9.5 | 4.0-5.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20336 | GRS5070W |
PPR-5070W |
PA6 UL94V2 |
Blanc |
11.4 | 2.8 | 7.0 | 5.0 | 9.5 | 4.0-5.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20337 | GRS5080B |
PPR-5080B |
PA6 UL94V2 |
Noir |
11.4 | 2.8 | 8.0 | 5.0 | 9.5 | 5.0-6.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20338 | GRS5080W |
PPR-5080W |
PA6 UL94V2 |
Blanc |
11.4 | 2.8 | 8.0 | 5.0 | 9.5 | 5.0-6.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20339 | GRS5090B |
PPR-5090B |
PA6 UL94V2 |
Noir |
12.4 | 2.8 | 9.0 | 5.0 | 9.5 | 6.0-7.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20340 | GRS5090W |
PPR-5090W |
PA6 UL94V2 |
Blanc |
12.4 | 2.8 | 9.0 | 5.0 | 9.5 | 6.0-7.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20341 | GRS5100B |
PPR-5100B |
PA6 UL94V2 |
Noir |
13.6 | 2.8 | 10.0 | 5.0 | 9.5 | 7.0-8.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20342 | GRS5100W |
PPR-5100W |
PA6 UL94V2 |
Blanc |
13.6 | 2.8 | 10.0 | 5.0 | 9.5 | 7.0-8.0 | 5.1-5.2 |
2 |
1000 |
|
|
| 20343 | GRS6060B |
PPR-6060B |
PA6 UL94V2 |
Noir |
9.8 | 1.5 | 6.0 | 6.0 | 11.0 | 2.5-4.0 | 6.1-6.2 |
3 |
1000 |
|
|
| 20344 | GRS6060W |
PPR-6060W |
PA6 UL94V2 |
Blanc |
9.8 | 1.5 | 6.0 | 6.0 | 11.0 | 2.5-4.0 | 6.1-6.2 |
3 |
1000 |
|
|
| 20643 | GRS3053SPB |
- |
PA6 UL94V2 |
Noir |
6.3 | 1.0 | 5.3 | 3.0 | 5.0 | 2.5-3.5 | 3.1-3.2 |
3 |
1000 |
|
|
| 21123 | GRS3053SPW |
- |
PA6 UL94V2 |
Blanc |
6.3 | 1.0 | 5.3 | 3.0 | 5.0 | 2.5-3.5 | 3.1-3.2 |
3 |
1000 |
|
|
