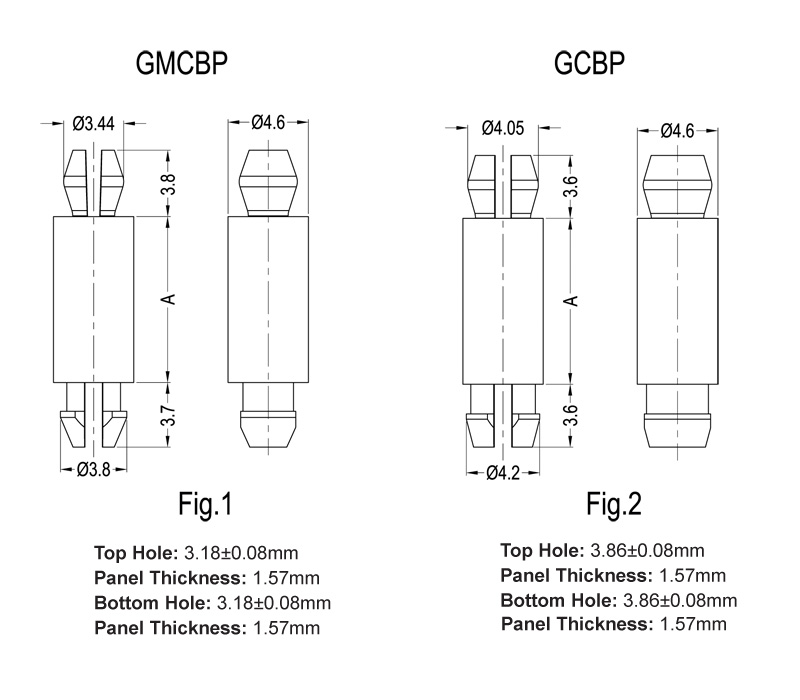

GMCBP, GCBP

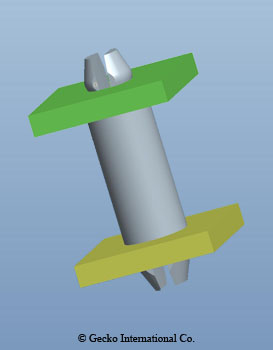

PCB Support - Spacer - Locking/Non Locking Two Prong
| Nº Ref. | Nº Artículo | Cross-Ref. |
Material |
Color |
A |
FIG |
Agujero Superior | Agujero Inferior |
Agujero Panel Superior | Agujero Panel Inferior |
Embalaje |
PDF |
3D |
| 40458 | GMCBP-1-66 |
- |
PA66 UL94V2 |
Natural |
2.0 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41043 | GMCBP-1-V0 |
- |
PA66 UL94V0 |
Natural |
2.0 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40457 | GMCBP-1S-66 |
- |
PA66 UL94V2 |
Natural |
2.54 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41042 | GMCBP-1S-V0 |
- |
PA66 UL94V0 |
Natural |
2.54 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40459 | GMCBP-2-66 |
MSPM-2-01 |
PA66 UL94V2 |
Natural |
3.2 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41044 | GMCBP-2-V0 |
MSPM-2-19 |
PA66 UL94V0 |
Natural |
3.2 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42276 | GMCBP-4M-66 |
- |
PA66 UL94V2 |
Natural |
4.0 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40797 | GMCBP-4M-V0 |
- |
PA66 UL94V0 |
Natural |
4.0 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40460 | GMCBP-3-66 |
MSPM-3-01 |
PA66 UL94V2 |
Natural |
4.8 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41045 | GMCBP-3-V0 |
MSPM-3-19 |
PA66 UL94V0 |
Natural |
4.8 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40461 | GMCBP-4-66 |
MSPM-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41046 | GMCBP-4-V0 |
MSPM-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40462 | GMCBP-5-66 |
MSPM-5-01 |
PA66 UL94V2 |
Natural |
7.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41047 | GMCBP-5-V0 |
MSPM-5-19 |
PA66 UL94V0 |
Natural |
7.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40464 | GMCBP-6-66 |
MSPM-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41048 | GMCBP-6-V0 |
MSPM-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40465 | GMCBP-7-66 |
MSPM-7-01 |
PA66 UL94V2 |
Natural |
11.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41049 | GMCBP-7-V0 |
MSPM-7-19 |
PA66 UL94V0 |
Natural |
11.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40466 | GMCBP-8-66 |
MSPM-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41050 | GMCBP-8-V0 |
MSPM-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40467 | GMCBP-9-66 |
MSPM-9-01 |
PA66 UL94V2 |
Natural |
14.3 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41051 | GMCBP-9-V0 |
MSPM-9-19 |
PA66 UL94V0 |
Natural |
14.3 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40468 | GMCBP-10-66 |
MSPM-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41052 | GMCBP-10-V0 |
MSPM-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40469 | GMCBP-11-66 |
MSPM-11-01 |
PA66 UL94V2 |
Natural |
17.5 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41053 | GMCBP-11-V0 |
MSPM-11-19 |
PA66 UL94V0 |
Natural |
17.5 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40470 | GMCBP-12-66 |
MSPM-12-01 |
PA66 UL94V2 |
Natural |
19.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41054 | GMCBP-12-V0 |
MSPM-12-19 |
PA66 UL94V0 |
Natural |
19.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40471 | GMCBP-13-66 |
MSPM-13-01 |
PA66 UL94V2 |
Natural |
20.6 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41055 | GMCBP-13-V0 |
MSPM-13-19 |
PA66 UL94V0 |
Natural |
20.6 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40472 | GMCBP-14-66 |
MSPM-14-01 |
PA66 UL94V2 |
Natural |
22.2 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41056 | GMCBP-14-V0 |
MSPM-14-19 |
PA66 UL94V0 |
Natural |
22.2 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40473 | GMCBP-16-66 |
MSPM-16-01 |
PA66 UL94V2 |
Natural |
25.4 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41057 | GMCBP-16-V0 |
MSPM-16-19 |
PA66 UL94V0 |
Natural |
25.4 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40474 | GMCBP-18-66 |
MSPM-18-01 |
PA66 UL94V2 |
Natural |
28.6 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41058 | GMCBP-18-V0 |
MSPM-18-19 |
PA66 UL94V0 |
Natural |
28.6 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40476 | GMCBP-20-66 |
MSPM-20-01 |
PA66 UL94V2 |
Natural |
31.7 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41059 | GMCBP-20-V0 |
MSPM-20-19 |
PA66 UL94V0 |
Natural |
31.7 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40478 | GMCBP-22-66 |
MSPM-22-01 |
PA66 UL94V2 |
Natural |
34.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41060 | GMCBP-22-V0 |
MSPM-22-19 |
PA66 UL94V0 |
Natural |
34.9 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40479 | GMCBP-24-66 |
MSPM-24-01 |
PA66 UL94V2 |
Natural |
38.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 41061 | GMCBP-24-V0 |
MSPM-24-19 |
PA66 UL94V0 |
Natural |
38.1 |
1 |
3.18 +/- 0.05 | 3.18 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42281 | GCBP-1-66 |
- |
PA66 UL94V2 |
Natural |
2.0 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42282 | GCBP-1-V0 |
- |
PA66 UL94V0 |
Natural |
2.0 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42279 | GCBP-1S-66 |
- |
PA66 UL94V2 |
Natural |
2.54 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42280 | GCBP-1S-V0 |
- |
PA66 UL94V0 |
Natural |
2.54 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40419 | GCBP-2-66 |
MSP-2-01 |
PA66 UL94V2 |
Natural |
3.2 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40420 | GCBP-2-V0 |
MSP-2-19 |
PA66 UL94V0 |
Natural |
3.2 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42283 | GCBP-4M-66 |
- |
PA66 UL94V2 |
Natural |
4.0 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 42284 | GCBP-4M-V0 |
- |
PA66 UL94V0 |
Natural |
4.0 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40421 | GCBP-3-66 |
MSP-3-01 |
PA66 UL94V2 |
Natural |
4.8 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40422 | GCBP-3-V0 |
MSP-3-19 |
PA66 UL94V0 |
Natural |
4.8 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40423 | GCBP-4-66 |
MSP-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40424 | GCBP-4-V0 |
MSP-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40425 | GCBP-5-66 |
MSP-5-01 |
PA66 UL94V2 |
Natural |
7.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40426 | GCBP-5-V0 |
MSP-5-19 |
PA66 UL94V0 |
Natural |
7.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40427 | GCBP-6-66 |
MSP-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40428 | GCBP-6-V0 |
MSP-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40429 | GCBP-7-66 |
MSP-7-01 |
PA66 UL94V2 |
Natural |
11.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40430 | GCBP-7-V0 |
MSP-7-19 |
PA66 UL94V0 |
Natural |
11.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40431 | GCBP-8-66 |
MSP-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40432 | GCBP-8-V0 |
MSP-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40433 | GCBP-9-66 |
MSP-9-01 |
PA66 UL94V2 |
Natural |
14.3 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40434 | GCBP-9-V0 |
MSP-9-19 |
PA66 UL94V0 |
Natural |
14.3 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40435 | GCBP-10-66 |
MSP-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40436 | GCBP-10-V0 |
MSP-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40437 | GCBP-11-66 |
MSP-11-01 |
PA66 UL94V2 |
Natural |
17.5 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40438 | GCBP-11-V0 |
MSP-11-19 |
PA66 UL94V0 |
Natural |
17.5 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40439 | GCBP-12-66 |
MSP-12-01 |
PA66 UL94V2 |
Natural |
19.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40440 | GCBP-12-V0 |
MSP-12-19 |
PA66 UL94V0 |
Natural |
19.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40441 | GCBP-13-66 |
MSP-13-01 |
PA66 UL94V2 |
Natural |
20.6 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40442 | GCBP-13-V0 |
MSP-13-19 |
PA66 UL94V0 |
Natural |
20.6 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40443 | GCBP-14-66 |
MSP-14-01 |
PA66 UL94V2 |
Natural |
22.2 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40444 | GCBP-14-V0 |
MSP-14-19 |
PA66 UL94V0 |
Natural |
22.2 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40446 | GCBP-16-66 |
MSP-16-01 |
PA66 UL94V2 |
Natural |
25.4 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40447 | GCBP-16-V0 |
MSP-16-19 |
PA66 UL94V0 |
Natural |
25.4 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40448 | GCBP-18-66 |
MSP-18-01 |
PA66 UL94V2 |
Natural |
28.6 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40449 | GCBP-18-V0 |
MSP-18-19 |
PA66 UL94V0 |
Natural |
28.6 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40450 | GCBP-20-66 |
MSP-20-01 |
PA66 UL94V2 |
Natural |
31.7 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40451 | GCBP-20-V0 |
MSP-20-19 |
PA66 UL94V0 |
Natural |
31.7 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40453 | GCBP-22-66 |
MSP-22-01 |
PA66 UL94V2 |
Natural |
34.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40454 | GCBP-22-V0 |
MSP-22-19 |
PA66 UL94V0 |
Natural |
34.9 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40455 | GCBP-24-66 |
MSP-24-01 |
PA66 UL94V2 |
Natural |
38.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
| 40456 | GCBP-24-V0 |
MSP-24-19 |
PA66 UL94V0 |
Natural |
38.1 |
2 |
3.86 +/- 0.05 | 3.86 +/- 0.05 |
1.57 | 1.57 |
1000 |
|
|
