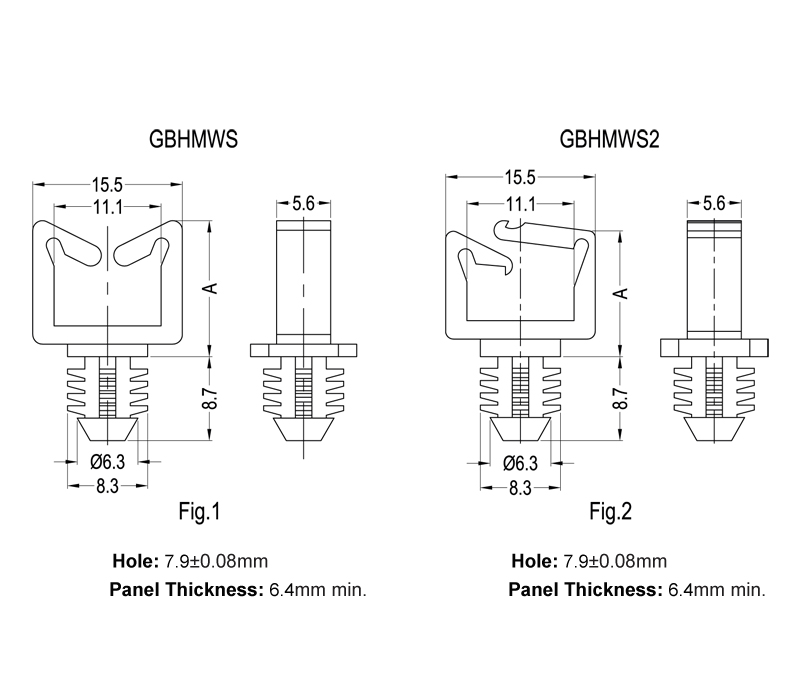

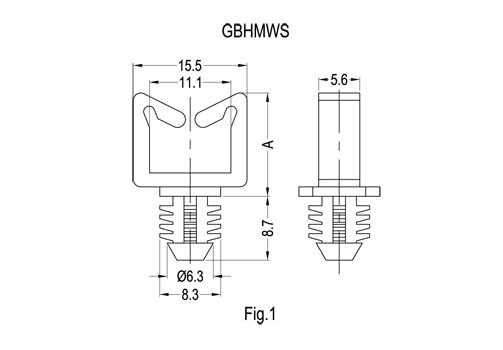

GBHMWS, GBHMWS2
Wire Saddle, Non-Locking, Locking, Fir Tree, PA66 UL94V2, PA66 UL94V0, PA6 UL94V2
| Nº Ref. | Nº Artículo | Cross-Ref. |
Material |
Color |
A |
FIG |
Orificio |
Grosor Panel |
Embalaje |
PDF |
3D |
| 60070 | GBHMWS-1-66 |
WSBH-1-01 |
PA66 UL94V2 |
Natural |
13.0 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60927 | GBHMWS-1-V0 |
WSBH-1-19 |
PA66 UL94V0 |
Natural |
13.0 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 61037 | GBHMWS-1-66B |
WSBH-1-01BK |
PA66 UL94V2 |
Negro |
13.0 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60071 | GBHMWS-2-66 |
WSBH-2-01 |
PA66 UL94V2 |
Natural |
18.3 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60928 | GBHMWS-2-V0 |
WSBH-2-19 |
PA66 UL94V0 |
Natural |
18.3 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60466 | GBHMWS-2-66B |
WSBH-2-01BK |
PA66 UL94V2 |
Negro |
18.3 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60072 | GBHMWS-3-66 |
WSBH-3-01 |
PA66 UL94V2 |
Natural |
27.2 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60929 | GBHMWS-3-V0 |
WSBH-3-19 |
PA66 UL94V0 |
Natural |
27.2 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 61038 | GBHMWS-3-66B |
WSBH-3-01BK |
PA66 UL94V2 |
Negro |
27.2 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60073 | GBHMWS-4-66 |
WSBH-4-01 |
PA66 UL94V2 |
Natural |
35.6 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60930 | GBHMWS-4-V0 |
WSBH-4-19 |
PA66 UL94V0 |
Natural |
35.6 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 61039 | GBHMWS-4-66B |
WSBH-4-01BK |
PA66 UL94V2 |
Negro |
35.6 |
1 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60232 | GBHMWS2-1-66 |
LWSBH-1-01 |
PA66 UL94V2 |
Natural |
13.0 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60931 | GBHMWS2-1-V0 |
LWSBH-1-19 |
PA66 UL94V0 |
Natural |
13.0 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60233 | GBHMWS2-2-66 |
LWSBH-2-01 |
PA66 UL94V2 |
Natural |
18.0 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60932 | GBHMWS2-2-V0 |
LWSBH-2-19 |
PA66 UL94V0 |
Natural |
18.0 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60234 | GBHMWS2-3-66 |
LWSBH-3-01 |
PA66 UL94V2 |
Natural |
27.2 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60933 | GBHMWS2-3-V0 |
LWSBH-3-19 |
PA66 UL94V0 |
Natural |
27.2 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60235 | GBHMWS2-4-66 |
LWSBH-4-01 |
PA66 UL94V2 |
Natural |
35.2 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
| 60934 | GBHMWS2-4-V0 |
LWSBH-4-19 |
PA66 UL94V0 |
Natural |
35.2 |
2 |
7.9 +/- 0.08 |
6,4 (min) |
1000 |
|
|
