GCRLCBSR-L2

PCB Support - Spacer - Locking Bayonet, Reverse Locking Support, Push Spacer

Back to
Sizes in mm
  • abstandshalter-spacer-locking-2.jpg

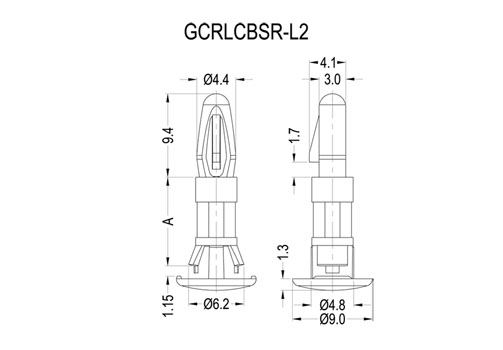

  • GCRLCBSR-L2 2D 503X350.jpg
P/N. Article No. Material Color A Top Hole Bottom Hole Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
42769 GCRLCBSR-L2-10 PA66 UL94V2 Black 10.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42770 GCRLCBSR-L2-11 PA66 UL94V2 Black 11.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42771 GCRLCBSR-L2-12 PA66 UL94V2 Black 12.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42772 GCRLCBSR-L2-13 PA66 UL94V2 Black 13.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42773 GCRLCBSR-L2-14 PA66 UL94V2 Black 14.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42774 GCRLCBSR-L2-15 PA66 UL94V2 Black 15.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42775 GCRLCBSR-L2-16 PA66 UL94V2 Black 16.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42776 GCRLCBSR-L2-17 PA66 UL94V2 Black 17.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42777 GCRLCBSR-L2-18 PA66 UL94V2 Black 18.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42778 GCRLCBSR-L2-19 PA66 UL94V2 Black 19.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
42779 GCRLCBSR-L2-20 PA66 UL94V2 Black 20.0 4.0 +/- 0.08 5.0 +/- 0.08 1.6 1.0 1000
