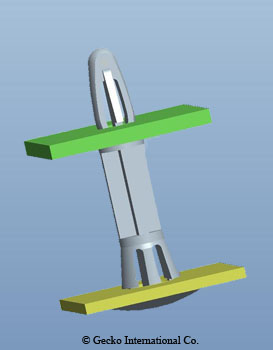

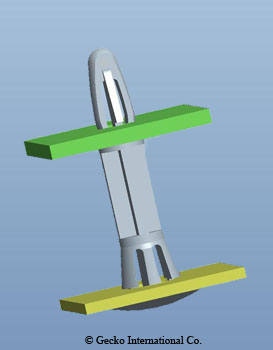

GLCBSC5, GLCBSC6, GLCBSC7
PCB Support - Spacer - Locking Bayonet, Reverse Locking Support, Push Spacer
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A |

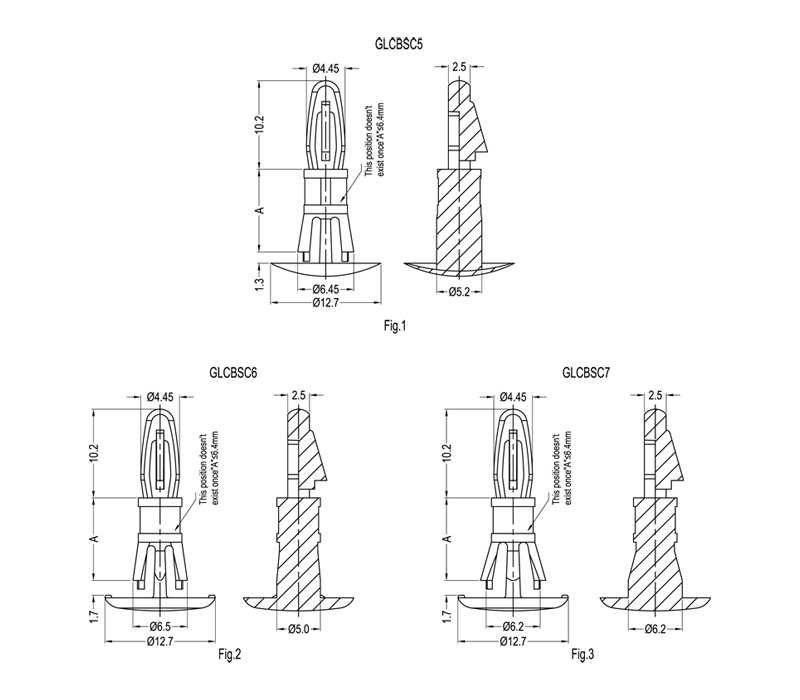

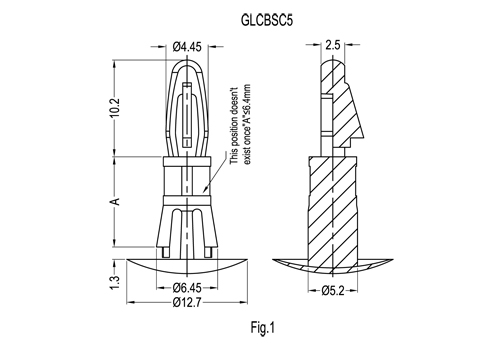

FIG |
Top Hole | Bottom Hole |
Top Panel Thickness | Bottom Panel Thickness |
Packing Unit |
PDF |
3D |
| 42693 | GLCBSC5-3-66 |
CRLCBSRE-3-01 |
PA66 UL94V2 |
Natural |
4.8 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 42694 | GLCBSC5-3-V0 |
CRLCBSRE-3-19 |
PA66 UL94V0 |
Natural |
4.8 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 40889 | GLCBSC5-4-66 |
CRLCBSRE-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 42019 | GLCBSC5-4-V0 |
CRLCBSRE-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 40890 | GLCBSC5-6-66 |
CRLCBSRE-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 42020 | GLCBSC5-6-V0 |
CRLCBSRE-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 40891 | GLCBSC5-8-66 |
CRLCBSRE-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 42021 | GLCBSC5-8-V0 |
CRLCBSRE-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 40892 | GLCBSC5-10-66 |
CRLCBSRE-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 42022 | GLCBSC5-10-V0 |
CRLCBSRE-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
1 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.6 | 1.2-2.0 |
1000 |
|
|
| 43775 | GLCBSC6-3-66 |
RLCBSRE-3-01 |
PA66 UL94V2 |
Natural |
4.8 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 43774 | GLCBSC6-3-V0 |
RLCBSRE-3-19 |
PA66 UL94V0 |
Natural |
4.8 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40984 | GLCBSC6-4-66 |
RLCBSRE-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41557 | GLCBSC6-4-V0 |
RLCBSRE-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40983 | GLCBSC6-4-66B |
RLCBSRE-4-01BK |
PA66 UL94V2 |
Black |
6.4 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40985 | GLCBSC6-6-66 |
RLCBSRE-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41558 | GLCBSC6-6-V0 |
RLCBSRE-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 42386 | GLCBSC6-6-66B |
RLCBSRE-6-01BK |
PA66 UL94V2 |
Black |
9.5 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40986 | GLCBSC6-8-66 |
RLCBSRE-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41559 | GLCBSC6-8-V0 |
RLCBSRE-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40987 | GLCBSC6-10-66 |
RLCBSRE-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41560 | GLCBSC6-10-V0 |
RLCBSRE-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
2 |
4.0 +/- 0.08 | 5.4 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40988 | GLCBSC7-4-66 |
RLCBSR1-4-01 |
PA66 UL94V2 |
Natural |
6.4 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41561 | GLCBSC7-4-V0 |
RLCBSR1-4-19 |
PA66 UL94V0 |
Natural |
6.4 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40989 | GLCBSC7-6-66 |
RLCBSR1-6-01 |
PA66 UL94V2 |
Natural |
9.5 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41562 | GLCBSC7-6-V0 |
RLCBSR1-6-19 |
PA66 UL94V0 |
Natural |
9.5 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40990 | GLCBSC7-8-66 |
RLCBSR1-8-01 |
PA66 UL94V2 |
Natural |
12.7 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41563 | GLCBSC7-8-V0 |
RLCBSR1-8-19 |
PA66 UL94V0 |
Natural |
12.7 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 42532 | GLCBSC7-8-66B |
RLCBSR1-8-01BK |
PA66 UL94V2 |
Black |
12.7 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 40991 | GLCBSC7-10-66 |
RLCBSR1-10-01 |
PA66 UL94V2 |
Natural |
15.9 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
| 41564 | GLCBSC7-10-V0 |
RLCBSR1-10-19 |
PA66 UL94V0 |
Natural |
15.9 |
3 |
4.0 +/- 0.08 | 6.35 +/- 0.08 |
1.57 | 1.5-1.65 |
1000 |
|
|
