GLNCBS

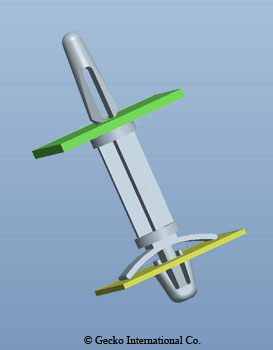

PCB Support - Spacer - Extended Non-Locking Bayonet with Locking Arrowhead

Back to

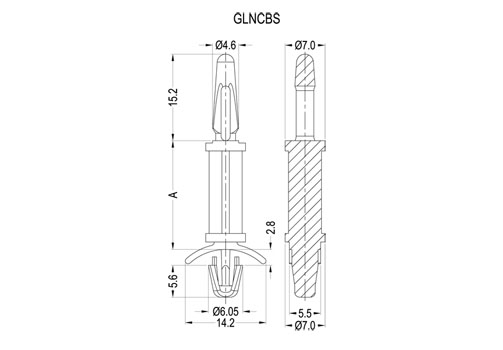

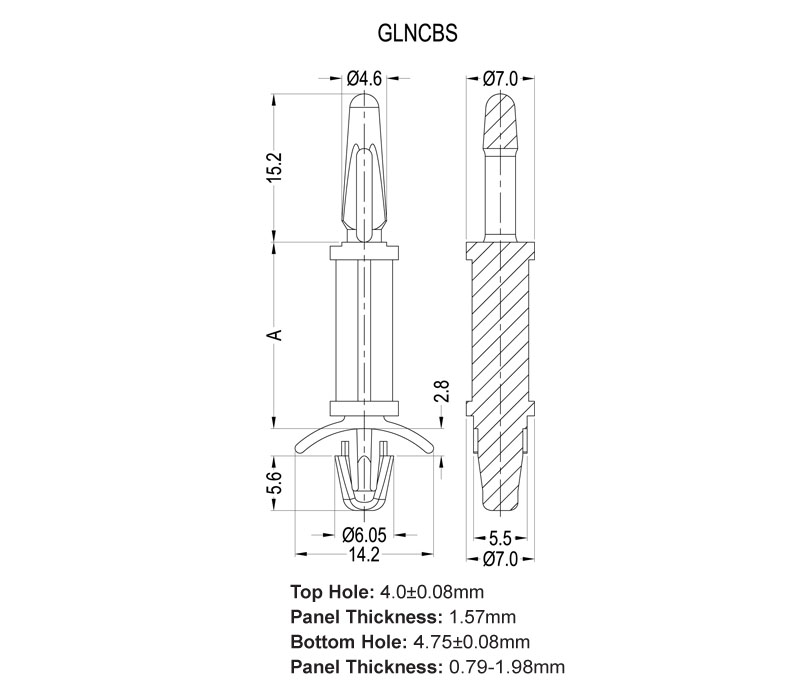

Sizes in mm
  • abstandshalter-richco-lncbs-3-01.jpg
  • GLNCBS 2D 503X350.jpg
P/N. Article No. Cross-Ref. Material Color A Top Hole Bottom Hole Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
42516 GLNCBS-3-01 LNCBS-3-01 PA66 UL94V2 Natural 4.8 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42521 GLNCBS-3-19 LNCBS-3-19 PA66 UL94V0 Natural 4.8 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42494 GLNCBS-4-01 LNCBS-4-01 PA66 UL94V2 Natural 6.4 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42522 GLNCBS-4-19 LNCBS-4-19 PA66 UL94V0 Natural 6.4 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42517 GLNCBS-6-01 LNCBS-6-01 PA66 UL94V2 Natural 9.5 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42523 GLNCBS-6-19 LNCBS-6-19 PA66 UL94V0 Natural 9.5 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42518 GLNCBS-8-01 LNCBS-8-01 PA66 UL94V2 Natural 12.7 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42524 GLNCBS-8-19 LNCBS-8-19 PA66 UL94V0 Natural 12.7 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42519 GLNCBS-10-01 LNCBS-10-01 PA66 UL94V2 Natural 15.9 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42525 GLNCBS-10-19 LNCBS-10-19 PA66 UL94V0 Natural 15.9 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
40975 GLNCBS-12-01 LNCBS-12-01 PA66 UL94V2 Natural 19.1 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42526 GLNCBS-12-19 LNCBS-12-19 PA66 UL94V0 Natural 19.1 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42520 GLNCBS-14-01 LNCBS-14-01 PA66 UL94V2 Natural 22.2 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
42527 GLNCBS-14-19 LNCBS-14-19 PA66 UL94V0 Natural 22.2 4.0 +/- 0.08 4.75 +/- 0.08 1.57 0.79-1.98 1000
