MINI GSP-MDLS-1/2/3

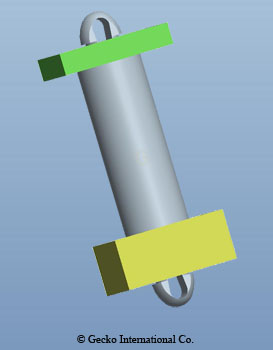

PCB Support - Spacer - with Locking Teardrop
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A |
FIG |
Top Hole | Bottom Hole |
Top Panel Thickness | Bottom Panel Thickness |
Packing Unit |
PDF |
3D |
| 40099 | GSP-MDLS-1-2M-66 |
MDLSPK1-02M-01 |
PA66 UL94V2 |
Natural |
2.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40100 | GSP-MDLS-1-2M-V0 |
MDLSPK1-02M-19 |
PA66 UL94V0 |
Natural |
2.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40101 | GSP-MDLS-1-3M-66 |
MDLSPK1-03M-01 |
PA66 UL94V2 |
Natural |
3.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40102 | GSP-MDLS-1-3M-V0 |
MDLSPK1-03M-19 |
PA66 UL94V0 |
Natural |
3.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40103 | GSP-MDLS-1-4M-66 |
MDLSPK1-04M-01 |
PA66 UL94V2 |
Natural |
4.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40104 | GSP-MDLS-1-4M-V0 |
MDLSPK1-04M-19 |
PA66 UL94V0 |
Natural |
4.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40105 | GSP-MDLS-1-5M-66 |
MDLSPK1-05M-01 |
PA66 UL94V2 |
Natural |
5.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40106 | GSP-MDLS-1-5M-V0 |
MDLSPK1-05M-19 |
PA66 UL94V0 |
Natural |
5.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40107 | GSP-MDLS-1-6M-66 |
MDLSPK1-06M-01 |
PA66 UL94V2 |
Natural |
6.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40108 | GSP-MDLS-1-6M-V0 |
MDLSPK1-06M-19 |
PA66 UL94V0 |
Natural |
6.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40109 | GSP-MDLS-1-7M-66 |
MDLSPK1-07M-01 |
PA66 UL94V2 |
Natural |
7.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40110 | GSP-MDLS-1-7M-V0 |
MDLSPK1-07M-19 |
PA66 UL94V0 |
Natural |
7.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40111 | GSP-MDLS-1-8M-66 |
MDLSPK1-08M-01 |
PA66 UL94V2 |
Natural |
8.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40112 | GSP-MDLS-1-8M-V0 |
MDLSPK1-08M-19 |
PA66 UL94V0 |
Natural |
8.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40113 | GSP-MDLS-1-10M-66 |
MDLSPK1-10M-01 |
PA66 UL94V2 |
Natural |
10.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40114 | GSP-MDLS-1-10M-V0 |
MDLSPK1-10M-19 |
PA66 UL94V0 |
Natural |
10.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40115 | GSP-MDLS-1-12M-66 |
MDLSPK1-12M-01 |
PA66 UL94V2 |
Natural |
12.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40116 | GSP-MDLS-1-12M-V0 |
MDLSPK1-12M-19 |
PA66 UL94V0 |
Natural |
12.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40117 | GSP-MDLS-1-14M-66 |
MDLSPK1-14M-01 |
PA66 UL94V2 |
Natural |
14.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40118 | GSP-MDLS-1-14M-V0 |
MDLSPK1-14M-19 |
PA66 UL94V0 |
Natural |
14.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40119 | GSP-MDLS-1-16M-66 |
MDLSPK1-16M-01 |
PA66 UL94V2 |
Natural |
16.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40120 | GSP-MDLS-1-16M-V0 |
MDLSPK1-16M-19 |
PA66 UL94V0 |
Natural |
16.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40121 | GSP-MDLS-1-18M-66 |
MDLSPK1-18M-01 |
PA66 UL94V2 |
Natural |
18.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40122 | GSP-MDLS-1-18M-V0 |
MDLSPK1-18M-19 |
PA66 UL94V0 |
Natural |
18.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40123 | GSP-MDLS-1-20M-66 |
MDLSPK1-20M-01 |
PA66 UL94V2 |
Natural |
20.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40124 | GSP-MDLS-1-20M-V0 |
MDLSPK1-20M-19 |
PA66 UL94V0 |
Natural |
20.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40125 | GSP-MDLS-1-22M-66 |
MDLSPK1-22M-01 |
PA66 UL94V2 |
Natural |
22.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40126 | GSP-MDLS-1-22M-V0 |
MDLSPK1-22M-19 |
PA66 UL94V0 |
Natural |
22.0 |
1 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40127 | GSP-MDLS-2-2M-66 |
MDLSPK2-02M-01 |
PA66 UL94V2 |
Natural |
2.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40128 | GSP-MDLS-2-2M-V0 |
MDLSPK2-02M-19 |
PA66 UL94V0 |
Natural |
2.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40129 | GSP-MDLS-2-3M-66 |
MDLSPK2-03M-01 |
PA66 UL94V2 |
Natural |
3.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40130 | GSP-MDLS-2-3M-V0 |
MDLSPK2-03M-19 |
PA66 UL94V0 |
Natural |
3.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40131 | GSP-MDLS-2-4M-66 |
MDLSPK2-04M-01 |
PA66 UL94V2 |
Natural |
4.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40132 | GSP-MDLS-2-4M-V0 |
MDLSPK2-04M-19 |
PA66 UL94V0 |
Natural |
4.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40133 | GSP-MDLS-2-5M-66 |
MDLSPK2-05M-01 |
PA66 UL94V2 |
Natural |
5.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40134 | GSP-MDLS-2-5M-V0 |
MDLSPK2-05M-19 |
PA66 UL94V0 |
Natural |
5.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40135 | GSP-MDLS-2-6M-66 |
MDLSPK2-06M-01 |
PA66 UL94V2 |
Natural |
6.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40136 | GSP-MDLS-2-6M-V0 |
MDLSPK2-06M-19 |
PA66 UL94V0 |
Natural |
6.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40137 | GSP-MDLS-2-7M-66 |
MDLSPK2-07M-01 |
PA66 UL94V2 |
Natural |
7.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40138 | GSP-MDLS-2-7M-V0 |
MDLSPK2-07M-19 |
PA66 UL94V0 |
Natural |
7.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40139 | GSP-MDLS-2-8M-66 |
MDLSPK2-08M-01 |
PA66 UL94V2 |
Natural |
8.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40140 | GSP-MDLS-2-8M-V0 |
MDLSPK2-08M-19 |
PA66 UL94V0 |
Natural |
8.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40141 | GSP-MDLS-2-10M-66 |
MDLSPK2-10M-01 |
PA66 UL94V2 |
Natural |
10.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40142 | GSP-MDLS-2-10M-V0 |
MDLSPK2-10M-19 |
PA66 UL94V0 |
Natural |
10.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40143 | GSP-MDLS-2-12M-66 |
MDLSPK2-12M-01 |
PA66 UL94V2 |
Natural |
12.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40144 | GSP-MDLS-2-12M-V0 |
MDLSPK2-12M-19 |
PA66 UL94V0 |
Natural |
12.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40145 | GSP-MDLS-2-14M-66 |
MDLSPK2-14M-01 |
PA66 UL94V2 |
Natural |
14.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40146 | GSP-MDLS-2-14M-V0 |
MDLSPK2-14M-19 |
PA66 UL94V0 |
Natural |
14.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40147 | GSP-MDLS-2-16M-66 |
MDLSPK2-16M-01 |
PA66 UL94V2 |
Natural |
16.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40148 | GSP-MDLS-2-16M-V0 |
MDLSPK2-16M-19 |
PA66 UL94V0 |
Natural |
16.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40149 | GSP-MDLS-2-18M-66 |
MDLSPK2-18M-01 |
PA66 UL94V2 |
Natural |
18.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40150 | GSP-MDLS-2-18M-V0 |
MDLSPK2-18M-19 |
PA66 UL94V0 |
Natural |
18.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40151 | GSP-MDLS-2-20M-66 |
MDLSPK2-20M-01 |
PA66 UL94V2 |
Natural |
20.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40152 | GSP-MDLS-2-20M-V0 |
MDLSPK2-20M-19 |
PA66 UL94V0 |
Natural |
20.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40153 | GSP-MDLS-2-22M-66 |
MDLSPK2-22M-01 |
PA66 UL94V2 |
Natural |
22.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 40154 | GSP-MDLS-2-22M-V0 |
MDLSPK2-22M-19 |
PA66 UL94V0 |
Natural |
22.0 |
2 |
3.5 +/- 0.05 | 3.5 +/- 0.05 |
1.57 | 3.6 |
1000 |
|
|
| 43987 | GSP-MDLS-3-2M-66 |
- |
PA66 UL94V2 |
Natural |
2.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43992 | GSP-MDLS-3-2M-V0 |
- |
PA66 UL94V0 |
Natural |
2.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43988 | GSP-MDLS-3-3M-66 |
- |
PA66 UL94V2 |
Natural |
3.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43993 | GSP-MDLS-3-3M-V0 |
- |
PA66 UL94V0 |
Natural |
3.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43986 | GSP-MDLS-3-4M-66 |
- |
PA66 UL94V2 |
Natural |
4.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43994 | GSP-MDLS-3-4M-V0 |
- |
PA66 UL94V0 |
Natural |
4.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43989 | GSP-MDLS-3-5M-66 |
- |
PA66 UL94V2 |
Natural |
5.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43995 | GSP-MDLS-3-5M-V0 |
- |
PA66 UL94V0 |
Natural |
5.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43990 | GSP-MDLS-3-6M-66 |
- |
PA66 UL94V2 |
Natural |
6.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43996 | GSP-MDLS-3-6M-V0 |
- |
PA66 UL94V0 |
Natural |
6.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43991 | GSP-MDLS-3-7M-66 |
- |
PA66 UL94V2 |
Natural |
7.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
| 43997 | GSP-MDLS-3-7M-V0 |
- |
PA66 UL94V0 |
Natural |
7.0 |
3 |
2.5 +/- 0.05 | 2.5 +/- 0.05 |
1.57 | 3.0 |
1000 |
|
|
