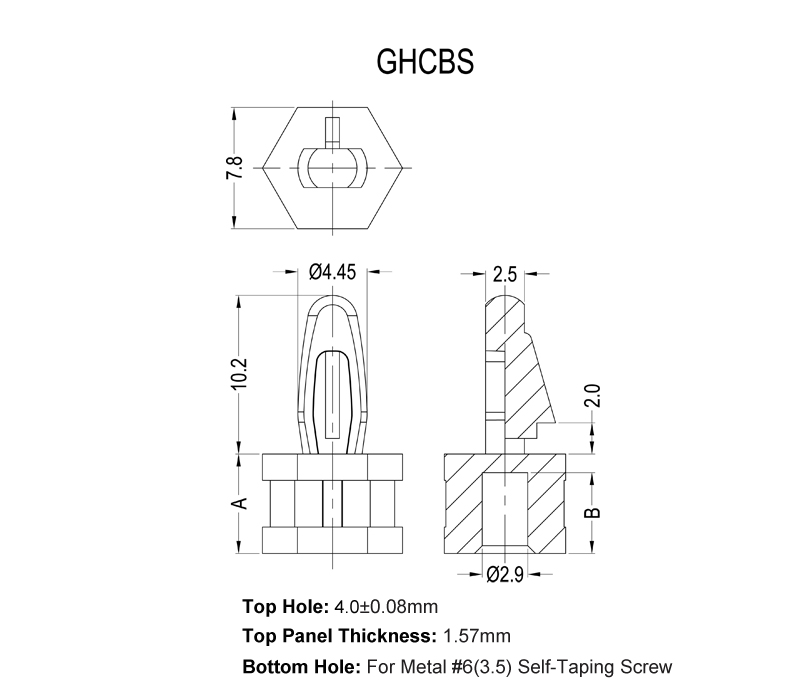

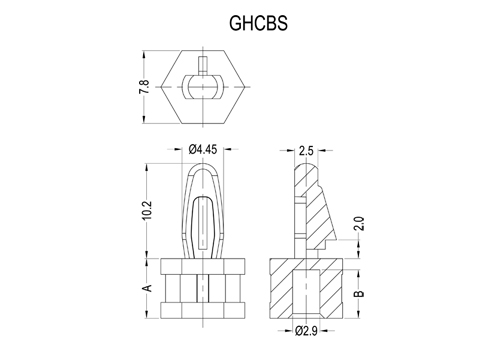

GHCBS

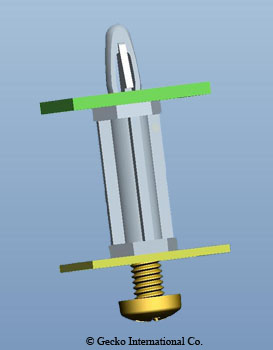

PCB Support - Spacer - Locking Bayonet, Female Thread, Self - Tapping
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A | B |
Top Hole | Bottom Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 40558 | GHCBS-4-66 |
TCBS-4-01 / 27FSTP00250 |
PA66 UL94V2 |
Natural |
6.4 | 5.2 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40559 | GHCBS-4-V0 |
TCBS-4-19 |
PA66 UL94V0 |
Natural |
6.4 | 5.2 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40560 | GHCBS-6-66 |
TCBS-6-01 / 27FSTP00375 |
PA66 UL94V2 |
Natural |
9.5 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40561 | GHCBS-6-V0 |
TCBS-6-19 |
PA66 UL94V0 |
Natural |
9.5 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40562 | GHCBS-8-66 |
TCBS-8-01 / 27FSTP00500 |
PA66 UL94V2 |
Natural |
12.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40563 | GHCBS-8-V0 |
TCBS-8-19 |
PA66 UL94V0 |
Natural |
12.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40564 | GHCBS-10-66 |
TCBS-10-01 / 27FSTP00625 |
PA66 UL94V2 |
Natural |
15.9 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40565 | GHCBS-10-V0 |
TCBS-10-19 |
PA66 UL94V0 |
Natural |
15.9 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40566 | GHCBS-12-66 |
TCBS-12-01 / 27FSTP00750 |
PA66 UL94V2 |
Natural |
19.1 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40567 | GHCBS-12-V0 |
TCBS-12-19 |
PA66 UL94V0 |
Natural |
19.1 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40568 | GHCBS-14-66 |
TCBS-14-01 / 27FSTP00875 |
PA66 UL94V2 |
Natural |
22.2 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40569 | GHCBS-14-V0 |
TCBS-14-19 |
PA66 UL94V0 |
Natural |
22.2 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40570 | GHCBS-16-66 |
TCBS-16-01 / 27FSTP01000 |
PA66 UL94V2 |
Natural |
25.4 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40571 | GHCBS-16-V0 |
TCBS-16-19 |
PA66 UL94V0 |
Natural |
25.4 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40572 | GHCBS-18-66 |
TCBS-18-01 / 27FSTP01125 |
PA66 UL94V2 |
Natural |
28.6 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40573 | GHCBS-18-V0 |
TCBS-18-19 |
PA66 UL94V0 |
Natural |
28.6 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40574 | GHCBS-20-66 |
TCBS-20-01 / 27FSTP01250 |
PA66 UL94V2 |
Natural |
31.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40575 | GHCBS-20-V0 |
TCBS-20-19 |
PA66 UL94V0 |
Natural |
31.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40576 | GHCBS-22.5-66 |
TCBS-22.5-01 / 27FSTP01406 |
PA66 UL94V2 |
Natural |
35.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
| 40577 | GHCBS-22.5-V0 |
TCBS-22.5-19 |
PA66 UL94V0 |
Natural |
35.7 | 7.9 |
4.0 +/- 0.08 | #6 (3.5) |
1.57 |
1000 |
|
|
