2182X

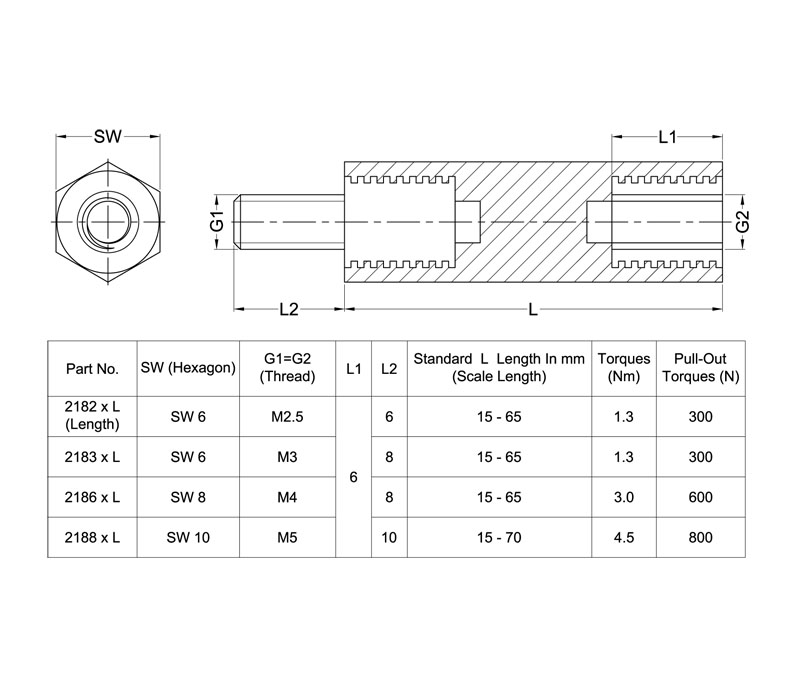

Hex Spacer, Without Undercut, Body: PA6.6, Thread: Brass Nickel Plated, M2.5 and M5, AF (SW) 6 - 10, Lengths 15.0 - 70.0mm.
Contact Resistance 1012 Ohm/cm. Dielectric Strength 50 kV/mm.

Back to
Sizes in mm
  • abstandshalter-spacer-brass-7.jpg

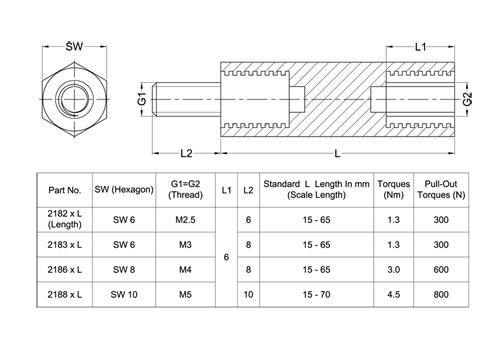

  • 2182xL 2D 503X350.jpg
Article No. Material Material I Color L L1 L2 G1 G2 Body SW Packing Unit PDF
2182 x *L* (Length) Brass 2.0401 Nickel Plated White 15.0-65.0 6.0 6.0 M2.5 M2.5 PA 6.6 SW 6 100
2183 x *L* Brass 2.0401 Nickel Plated White 15.0-65.0 6.0 8.0 M3 M3 PA 6.6 SW 6 100
2186 x *L* Brass 2.0401 Nickel Plated White 15.0-65.0 6.0 8.0 M4 M4 PA 6.6 SW 8 100
2188 x *L* Brass 2.0401 Nickel Plated White 15.0-70.0 6.0 10.0 M5 M5 PA 6.6 SW 10 100
