221X

Hex Spacer, With Undercut, Steel 1.0718, Surface Zinc Plated (A3F), Min. Tensile Strength 500 N/mm², M2 - M8, AF (SW) 4 - 13, Lengths 5.0 - 100.0mm.
DIN 2768-m applies to AF13. Optional without undercut and surcharge.

Back to

Sizes in mm

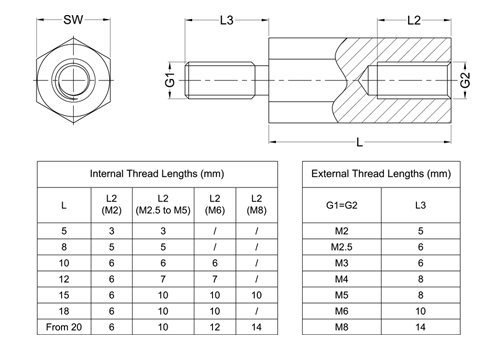

Click here for a detailed view

Article No.	Material	L	G1	G2	Surface	SW	Packing Unit	PDF
221 x L (Length)	Steel 1.0718	PDF	M2	M2	Zinc Plated	SW 4	100
2212 x L	Steel 1.0718	PDF	M2.5	M2.5	Zinc Plated	SW 4	100
222 x L	Steel 1.0718	PDF	M2.5	M2.5	Zinc Plated	SW 5	100
223 x L	Steel 1.0718	PDF	M3	M3	Zinc Plated	SW 5	100
224 x L	Steel 1.0718	PDF	M3	M3	Zinc Plated	SW 5.5	100
225 x L	Steel 1.0718	PDF	M3	M3	Zinc Plated	SW 6	100
226 x L	Steel 1.0718	PDF	M4	M4	Zinc Plated	SW 7	100
227 x L	Steel 1.0718	PDF	M4	M4	Zinc Plated	SW 8	100
228 x L	Steel 1.0718	PDF	M5	M5	Zinc Plated	SW 8	100
229 x L	Steel 1.0718	PDF	M6	M6	Zinc Plated	SW 10	100
2213 x L	Steel 1.0718	PDF	M8	M8	Zinc Plated	SW 13	100
