121X

Hex Spacer, Steel 1.0718, Surface Zinc Plated (A3F), Min. Tensile Strength 500 N/mm², M2 - M8, AF (SW) 4 - 13, Lengths 5.0 - 100.0mm.
Surface optional in blank available. DIN 2768-m applies to AF13.

Back to

Sizes in mm

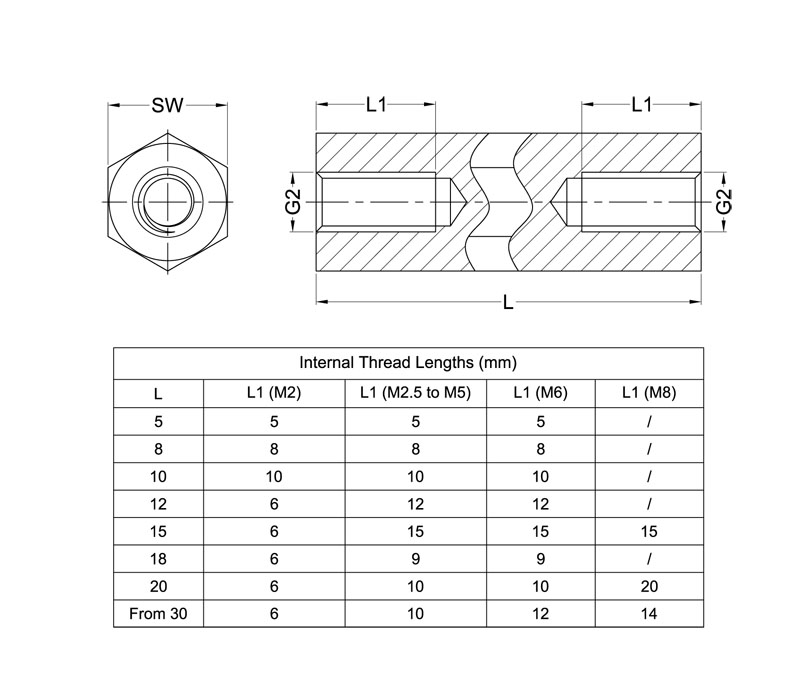

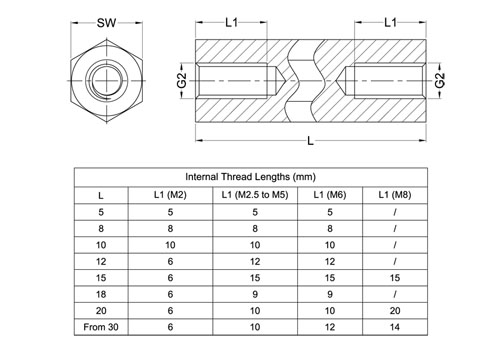

Click here for a detailed view

Article No.	Material	L	L1	G2	Surface	SW	Packing Unit	PDF
121 x L (Length)	Steel 1.0718	PDF	PDF	M2	Zinc Plated	SW 4	100
1212 x L	Steel 1.0718	PDF	PDF	M2.5	Zinc Plated	SW 4	100
122 x L	Steel 1.0718	PDF	PDF	M2.5	Zinc Plated	SW 5	100
123 x L	Steel 1.0718	PDF	PDF	M3	Zinc Plated	SW 5	100
124 x L	Steel 1.0718	PDF	PDF	M3	Zinc Plated	SW 5.5	100
125 x L	Steel 1.0718	PDF	PDF	M3	Zinc Plated	SW 6	100
126 x L	Steel 1.0718	PDF	PDF	M4	Zinc Plated	SW 7	100
127 x L	Steel 1.0718	PDF	PDF	M4	Zinc Plated	SW 8	100
128 x L	Steel 1.0718	PDF	PDF	M5	Zinc Plated	SW 8	100
129 x L	Steel 1.0718	PDF	PDF	M6	Zinc Plated	SW 10	100
1213 x L	Steel 1.0718	PDF	PDF	M8	Zinc Plated	SW 13	100
