GPGSB

Snap Fit Bushing, Open, PA66 UL94V2

Back to
Sizes in mm

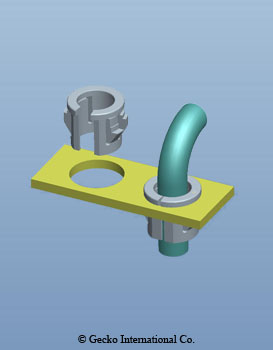

  • snap-bushing-pgsb-0609a.jpg

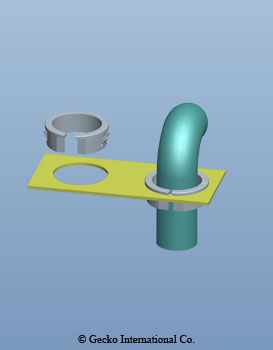

  • GPGSB 2D 503X350.jpg
P/N. Article No. Cross-Ref. Material Color A B C D FIG Bundle Ø Hole Panel Thickness Packing Unit PDF 3D
60705 GPGSB-0609A PGSB-0609A PA66 UL94V2 Black 11.4 6.6 6.5 1.3 1 6.6 9.5 +/- 0.08 0.7-1.7 1000
60706 GPGSB-1A PGSB-1A PA66 UL94V2 Black 10.7 6.7 9.9 1.3 1 6.7 9.5 +/- 0.08 0.8-3.2 1000
60707 GPGSB-2A PGSB-2A PA66 UL94V2 Black 12.7 7.9 10.3 1.6 1 7.9 11.1 +/- 0.08 0.8-3.2 1000
60708 GPGSB-1013A PGSB-1013A PA66 UL94V2 Black 14.9 9.0 10.5 1.5 1 9.0 13.0 +/- 0.08 0.8-3.5 1000
60709 GPGSB-1316A PGSB-1316A PA66 UL94V2 Black 18.0 10.5 10.5 1.6 1 10.5 16.0 +/- 0.08 1.2-3.5 1000
60710 GPGSB-1519A PGSB-1519A PA66 UL94V2 Black 20.6 14.5 11.0 1.3 1 14.5 19.0 +/- 0.08 1.2-3.3 1000
60711 GPGSB-4A PGSB-4A PA66 UL94V2 Black 26.6 20.6 10.3 1.6 2 20.6 25.4 +/- 0.08 0.8-3.2 500
60712 GPGSB-5A PGSB-5A PA66 UL94V2 Black 29.4 22.2 10.3 1.6 2 22.2 27.8 +/- 0.08 0.8-3.2 500
60713 GPGSB-6A PGSB-6A PA66 UL94V2 Black 34.1 26.6 10.3 1.6 2 26.6 31.8 +/- 0.08 0.8-3.2 500
60714 GPGSB-7A PGSB-7A PA66 UL94V2 Black 37.3 29.7 10.3 1.6 2 29.7 34.9 +/- 0.08 0.8-3.2 500
60715 GPGSB-8A PGSB-8A PA66 UL94V2 Black 40.1 31.7 10.7 1.6 2 31.7 38.1 +/- 0.08 0.8-3.2 500
