GF-103, GF-105, GF-106, GF-108, GF-109, GF-110, GF-113, GF-114
Fast Feet, Push-Fit Feet, Quick Assembly, Rivet Foot, Push Rivet, Hole 3.1-5.2, TPV UL94HB, PA6 UL94V2
| P/N. | Article No. | Cross-Ref. |
Material | Material I |
Color |
A | B | C |

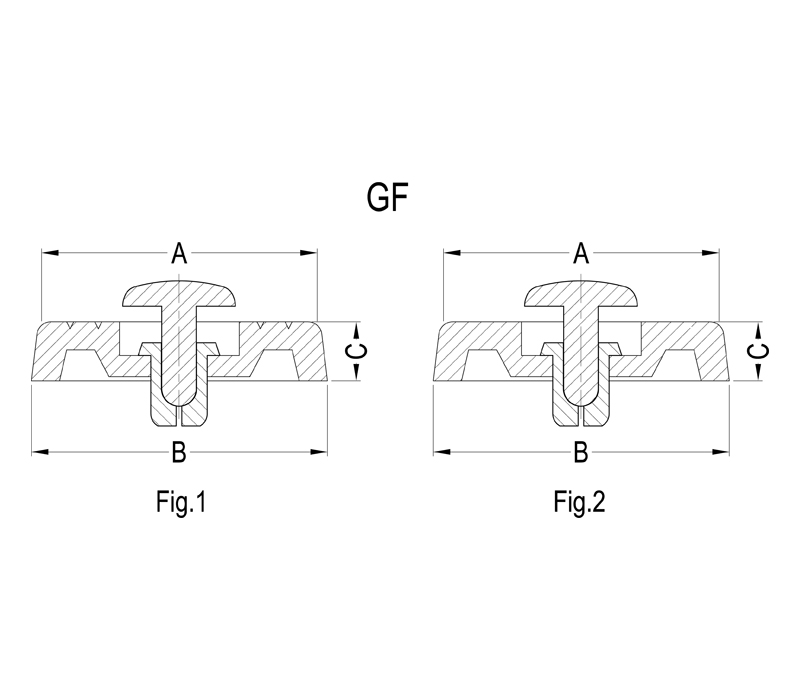

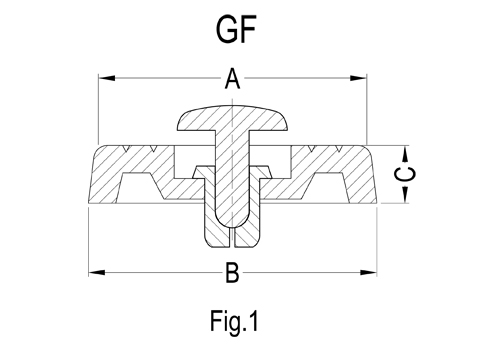

FIG |
Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 30016 | GF-105-R4050 |
FF-005-P4X5B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 4.2 |
1 |
4.1-4.2 |
0.8-1.8 |
1000 |
|
|
| 30017 | GF-105-R4050BV0 |
- |
TPV UL94HB | PA66 UL94V0 |
Black |
20.0 | 21.0 | 4.2 |
1 |
4.1-4.2 |
0.8-1.8 |
1000 |
|
|
| 30018 | GF-105-R4060 |
FF-005-P4X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 4.2 |
1 |
4.1-4.2 |
1.8-2.8 |
1000 |
|
|
| 30019 | GF-105-R4070 |
FF-005-P4X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 4.2 |
1 |
4.1-4.2 |
2.9-3.7 |
1000 |
|
|
| 30020 | GF-105-R4080 |
FF-005-P4X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 4.2 |
1 |
4.1-4.2 |
3.8-4.8 |
1000 |
|
|
| 30029 | GF-108-R4060 |
FF-008-P4X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 6.0 |
1 |
4.1-4.2 |
0.8-1.8 |
500 |
|
|
| 30030 | GF-108-R4070 |
FF-008-P4X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 6.0 |
1 |
4.1-4.2 |
1.9-2.8 |
500 |
|
|
| 30031 | GF-108-R4080 |
FF-008-P4X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 6.0 |
1 |
4.1-4.2 |
2.9-4.0 |
500 |
|
|
| 30254 | GF-109BB |
- |
TPV UL94HB | - |
Black |
20.0 | 21.0 | 8.0 |
1 |
- |
- |
500 |
|
|
| 30033 | GF-109-R4060 |
FF-009-P4X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 8.0 |
1 |
4.1-4.2 |
0.3-0.8 |
500 |
|
|
| 30034 | GF-109-R4070 |
FF-009-P4X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 8.0 |
1 |
4.1-4.2 |
0.8-2.0 |
500 |
|
|
| 30035 | GF-109-R4080 |
FF-009-P4X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 8.0 |
1 |
4.1-4.2 |
2.1-3.1 |
500 |
|
|
| 30036 | GF-109-R4090 |
FF-009-P4X9B |
TPV UL94HB | PA6 UL94V2 |
Black |
20.0 | 21.0 | 8.0 |
1 |
4.1-4.2 |
3.2-4.2 |
500 |
|
|
| 30042 | GF-113-R3545 |
FF-013-P3.5X4.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
0.5-1.2 |
1000 |
|
|
| 30047 | GF-113-40-R3545 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
0.5-1.2 |
1000 |
|
|
| 30361 | GF-113-R3550 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
0.7-1.6 |
1000 |
|
|
| 30362 | GF-113-R3550BV0 |
- |
TPV UL94HB | PA66 UL94V0 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
0.7-1.6 |
1000 |
|
|
| 30043 | GF-113-R3555 |
FF-013-P3.5X5.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
1.2-2.0 |
1000 |
|
|
| 30048 | GF-113-40-R3555 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
1.2-2.0 |
1000 |
|
|
| 30044 | GF-113-R3560 |
FF-013-P3.5X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
1.5-2.5 |
1000 |
|
|
| 30045 | GF-113-R3570 |
FF-013-P3.5X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
2.5-3.5 |
1000 |
|
|
| 30046 | GF-113-R3580 |
FF-013-P3.5X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 4.0 |
2 |
3.6-3.7 |
3.5-4.5 |
1000 |
|
|
| 30255 | GF-114-R3580 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
10.0 | 10.8 | 6.5 |
2 |
3.6-3.7 |
3.5-4.5 |
1000 |
|
|
| 30267 | GF-103BB |
- |
TPV UL94HB | - |
Black |
13.5 | 14.2 | 5.5 |
2 |
- |
- |
1000 |
|
|
| 30014 | GF-103-R3055 |
FF-003-P3X5.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
13.5 | 14.2 | 5.5 |
2 |
3.1-3.2 |
0.8-1.8 |
1000 |
|
|
| 30177 | GF-103-R3065 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
13.5 | 14.2 | 5.5 |
2 |
3.1-3.2 |
1.8-2.8 |
1000 |
|
|
| 30021 | GF-106-R4050 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
0.3-0.7 |
1000 |
|
|
| 30022 | GF-106-R4060 |
FF-006-P4X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
0.6-1.0 |
1000 |
|
|
| 30026 | GF-106-64-R4060 |
- |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
0.6-1.0 |
1000 |
|
|
| 30023 | GF-106-R4070 |
FF-006-P4X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
1.0-2.0 |
1000 |
|
|
| 30024 | GF-106-R4080 |
FF-006-P4X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
2.0-3.1 |
1000 |
|
|
| 30025 | GF-106-R4090 |
FF-006-P4X9B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
4.1-4.2 |
3.1-4.1 |
1000 |
|
|
| 30027 | GF-106-R5065 |
FF-006-P5X6.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
5.1-5.2 |
0.8-1.2 |
1000 |
|
|
| 30028 | GF-106-R5075 |
FF-006-P5X7.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 6.0 |
2 |
5.1-5.2 |
1.3-2.3 |
1000 |
|
|
| 30037 | GF-110-R4060 |
FF-010-P4X6B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 9.0 |
2 |
4.1-4.2 |
0.6-1.0 |
1000 |
|
|
| 30038 | GF-110-R4070 |
FF-010-P4X7B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 9.0 |
2 |
4.1-4.2 |
1.0-2.0 |
1000 |
|
|
| 30039 | GF-110-R4080 |
FF-010-P4X8B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 9.0 |
2 |
4.1-4.2 |
2.0-3.1 |
1000 |
|
|
| 30041 | GF-110-R5065 |
FF-010-P5X6.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 9.0 |
2 |
5.1-5.2 |
0.3-1.3 |
1000 |
|
|
| 30239 | GF-110-R5075 |
FF-010-P5X7.5B |
TPV UL94HB | PA6 UL94V2 |
Black |
14.0 | 15.0 | 9.0 |
2 |
5.1-5.2 |
1.3-2.3 |
1000 |
|
|
