GMB
Mini Mounting Button, PA6 UL94V2, PA66 UL94V2
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A | B | C | D |

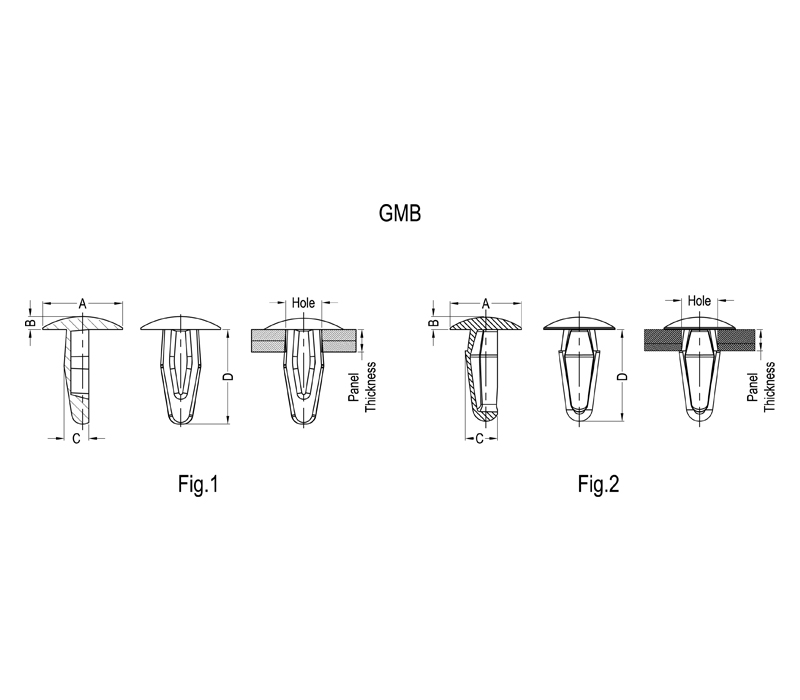

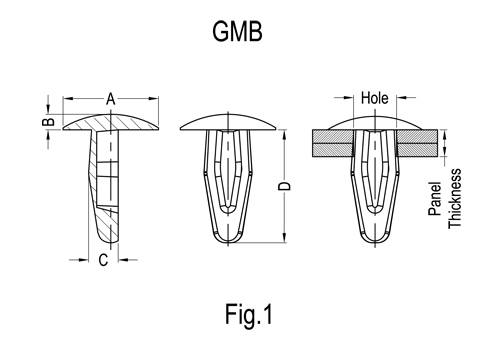

FIG |
Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 20642 | GMB-125-06B |
MMB-125-01BK |
PA6 UL94V2 |
Black |
7.1 | 1.15 | 2.2 | 8.4 |
1 |
3.10-3.22 |
2.0-2.5 |
1000 |
|
|
| 20884 | GMB-125-06N |
MMB-125-01 |
PA6 UL94V2 |
Natural |
7.1 | 1.15 | 2.2 | 8.4 |
1 |
3.10-3.22 |
2.0-2.5 |
1000 |
|
|
| 20668 | GMB-136-06B |
MMB-136-01BK |
PA6 UL94V2 |
Black |
10.3 | 1.7 | 3.2 | 11.1 |
1 |
3.32-3.58 |
2.9-4.0 |
1000 |
|
|
| 20713 | GMB-136-06N |
MMB-136-01 |
PA6 UL94V2 |
Natural |
10.3 | 1.7 | 3.2 | 11.1 |
1 |
3.32-3.58 |
2.9-4.0 |
1000 |
|
|
| 21415 | GMB-138-66B |
091000159902 |
PA66 UL94V2 |
Black |
7.6 | 1.1 | 3.3 | 13.0 |
1 |
3.42-3.58 |
2.4-5.8 |
1000 |
|
|
| 21414 | GMB-138-66N |
091000100002 |
PA66 UL94V2 |
Natural |
7.6 | 1.1 | 3.3 | 13.0 |
1 |
3.42-3.58 |
2.4-5.8 |
1000 |
|
|
| 20905 | GMB-187-06B |
MMB-187-01BK |
PA6 UL94V2 |
Black |
12.7 | 2.0 | 4.0 | 10.9 |
1 |
4.61-4.88 |
2.5-4.0 |
1000 |
|
|
| 20755 | GMB-187-06N |
MMB-187-01 |
PA6 UL94V2 |
Natural |
12.7 | 2.0 | 4.0 | 10.9 |
1 |
4.61-4.88 |
2.5-4.0 |
1000 |
|
|
| 20760 | GMB-250-06B |
MMB-250-01BK |
PA66 UL94V2 |
Black |
12.7 | 2.2 | 5.7 | 16.3 |
2 |
6.4-6.45 |
3.5-3.8 |
1000 |
|
|
| 20759 | GMB-250-06N |
MMB-250-01 |
PA66 UL94V2 |
Natural |
12.7 | 2.2 | 5.7 | 16.3 |
2 |
6.4-6.45 |
3.5-3.8 |
1000 |
|
|
