GRH26-35

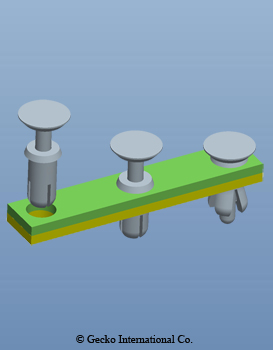

Snap Push-In Rivet, Beveled, Releasable, PA6 UL94V2, PA66 UL94V0
| P/N. | Article No. | Cross-Ref. |
Material |
Color |

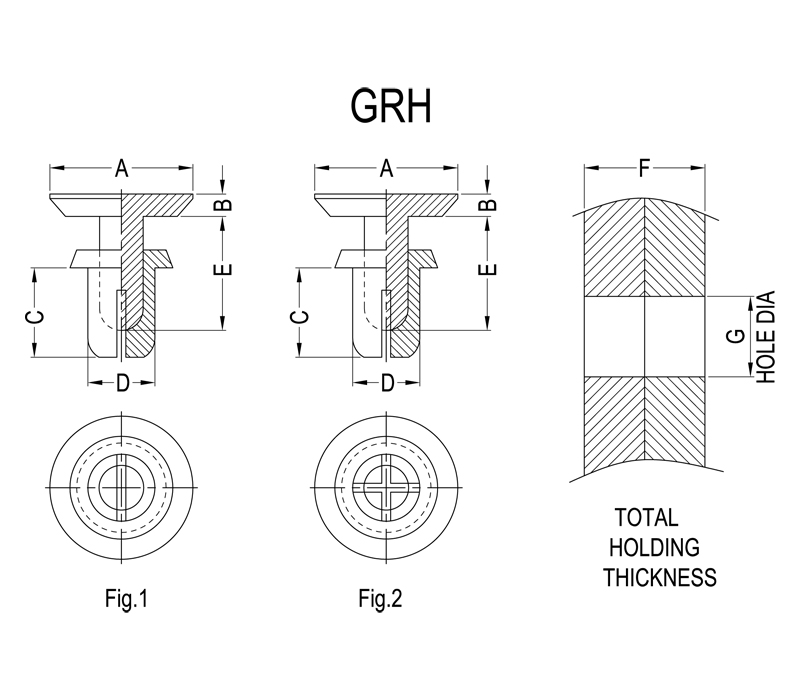

A | B | C | D | E | F | G |
FIG |
Packing Unit |
PDF |
3D |
| 20268 | GRH2685B |
- |
PA6 UL94V2 |
Black |
4.6 | 0.7 | 8.5 | 2.6 | 10.0 | 5.5-6.5 | 2.7-2.8 |
1 |
1000 |
|
|
| 20721 | GRH2685W |
- |
PA6 UL94V2 |
White |
4.6 | 0.7 | 8.5 | 2.6 | 10.0 | 5.5-6.5 | 2.7-2.8 |
1 |
1000 |
|
|
| 20750 | GRH2685BV0 |
- |
PA66 UL94V0 |
Black |
4.6 | 0.7 | 8.5 | 2.6 | 10.0 | 5.5-6.5 | 2.7-2.8 |
1 |
1000 |
|
|
| 20269 | GRH3035B |
SRH-3035 / 094111069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 3.5 | 3.0 | 6.5 | 1.0-2.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20271 | GRH3035W |
094111060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 3.5 | 3.0 | 6.5 | 1.0-2.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20270 | GRH3035BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 3.5 | 3.0 | 6.5 | 1.0-2.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20273 | GRH3045B |
SRH-3045 / 094112069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 4.5 | 3.0 | 6.5 | 2.0-3.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20275 | GRH3045W |
094112060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 4.5 | 3.0 | 6.5 | 2.0-3.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20274 | GRH3045BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 4.5 | 3.0 | 6.5 | 2.0-3.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20276 | GRH3055B |
SRH-3055 / 094113069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 5.5 | 3.0 | 6.5 | 3.0-4.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20278 | GRH3055W |
094113060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 5.5 | 3.0 | 6.5 | 3.0-4.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20277 | GRH3055BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 5.5 | 3.0 | 6.5 | 3.0-4.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20279 | GRH3065B |
SRH-3065 / 094113569901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 6.5 | 3.0 | 10.0 | 4.0-5.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20281 | GRH3065W |
094113560301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 6.5 | 3.0 | 10.0 | 4.0-5.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20280 | GRH3065BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 6.5 | 3.0 | 10.0 | 4.0-5.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20283 | GRH3075B |
- |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.0-6.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20285 | GRH3075W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.0-6.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20284 | GRH3075BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.0-6.0 | 3.1-3.2 |
1 |
1000 |
|
|
| 20286 | GRH3080B |
SRH-3080 / 094114569901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.5-6.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20288 | GRH3080W |
094114560301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.5-6.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20287 | GRH3080BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 8.0 | 3.0 | 10.0 | 5.5-6.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20289 | GRH3090B |
SRH-3090 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 9.0 | 3.0 | 12.0 | 6.5-7.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20291 | GRH3090W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 9.0 | 3.0 | 12.0 | 6.5-7.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20290 | GRH3090BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 9.0 | 3.0 | 12.0 | 6.5-7.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20292 | GRH3100B |
SRH-3100 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 10.0 | 3.0 | 12.0 | 7.5-8.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20294 | GRH3100W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 10.0 | 3.0 | 12.0 | 7.5-8.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20293 | GRH3100BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 10.0 | 3.0 | 12.0 | 7.5-8.5 | 3.1-3.2 |
1 |
1000 |
|
|
| 20295 | GRH3535B |
SRH-3535 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 3.5 | 3.5 | 6.5 | 1.2-2.1 | 3.6-3.7 |
2 |
1000 |
|
|
| 20297 | GRH3535W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 3.5 | 3.5 | 6.5 | 1.2-2.1 | 3.6-3.7 |
2 |
1000 |
|
|
| 20296 | GRH3535BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 3.5 | 3.5 | 6.5 | 1.2-2.1 | 3.6-3.7 |
2 |
1000 |
|
|
| 20298 | GRH3545B |
SRH-3545 / 094122069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 4.5 | 3.5 | 6.5 | 2.1-3.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 20300 | GRH3545W |
094122060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 4.5 | 3.5 | 6.5 | 2.1-3.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 20299 | GRH3545BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 4.5 | 3.5 | 6.5 | 2.1-3.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 21465 | GRH3550B |
- |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 5.0 | 3.5 | 6.5 | 2.7-3.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 21466 | GRH3550W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 5.0 | 3.5 | 6.5 | 2.7-3.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 21467 | GRH3550BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 5.0 | 3.5 | 6.5 | 2.7-3.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 20301 | GRH3555B |
SRH-3555 / 094124069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 5.5 | 3.5 | 10.0 | 3.0-4.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 20303 | GRH3555W |
094124060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 5.5 | 3.5 | 10.0 | 3.0-4.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 20302 | GRH3555BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 5.5 | 3.5 | 10.0 | 3.0-4.0 | 3.6-3.7 |
2 |
1000 |
|
|
| 20304 | GRH3560B |
SRH-3560 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 6.0 | 3.5 | 10.0 | 3.7-4.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 20306 | GRH3560W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 6.0 | 3.5 | 10.0 | 3.7-4.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 20305 | GRH3560BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 6.0 | 3.5 | 10.0 | 3.7-4.6 | 3.6-3.7 |
2 |
1000 |
|
|
| 20307 | GRH3570B |
SRH-3570 / 094126069901 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 7.0 | 3.5 | 10.0 | 4.5-5.5 | 3.6-3.7 |
2 |
1000 |
|
|
| 20309 | GRH3570W |
094126060301 |
PA6 UL94V2 |
White |
6.4 | 1.0 | 7.0 | 3.5 | 10.0 | 4.5-5.5 | 3.6-3.7 |
2 |
1000 |
|
|
| 20308 | GRH3570BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 7.0 | 3.5 | 10.0 | 4.5-5.5 | 3.6-3.7 |
2 |
1000 |
|
|
| 20310 | GRH3580B |
SRH-3580 |
PA6 UL94V2 |
Black |
6.4 | 1.0 | 8.0 | 3.5 | 10.0 | 5.5-6.5 | 3.6-3.7 |
2 |
1000 |
|
|
| 20312 | GRH3580W |
- |
PA6 UL94V2 |
White |
6.4 | 1.0 | 8.0 | 3.5 | 10.0 | 5.5-6.5 | 3.6-3.7 |
2 |
1000 |
|
|
| 20311 | GRH3580BV0 |
- |
PA66 UL94V0 |
Black |
6.4 | 1.0 | 8.0 | 3.5 | 10.0 | 5.5-6.5 | 3.6-3.7 |
2 |
1000 |
|
|
