GRHR20-32

Snap Push-In Rivet, Heat Resistant, PA46 UL94V2

Back to

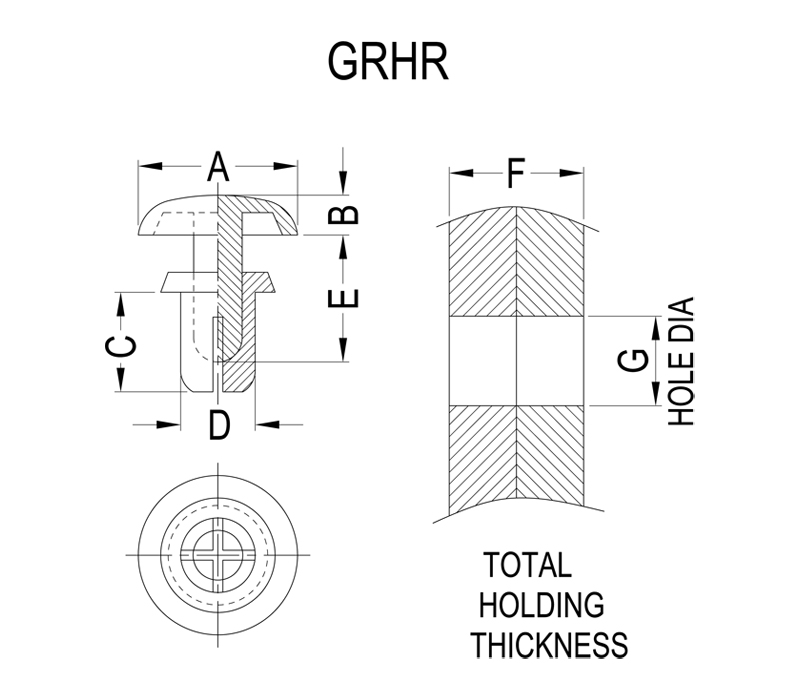

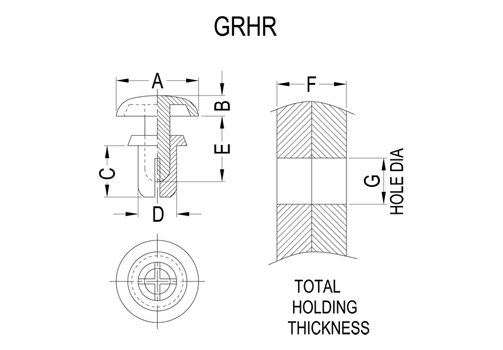

Sizes in mm
  • snap-rivet-richco-srhr-3035.jpg
P/N. Article No. Cross-Ref. Material Color A B C D E F G Packing Unit PDF 3D
20003 GRHR2024 SRHR-2024 PA46 UL94V2 Tan 4.2 1.2 2.4 2.0 2.8 0.6-1.2 2.1-2.2 1000
20007 GRHR2032 SRHR-2032 PA46 UL94V2 Tan 4.2 1.2 3.2 2.0 3.8 1.3-2.0 2.1-2.2 1000
20011 GRHR2040 SRHR-2040 PA46 UL94V2 Tan 4.2 1.2 4.0 2.0 5.5 2.1-2.8 2.1-2.2 1000
20015 GRHR2048 SRHR-2048 PA46 UL94V2 Tan 4.2 1.2 4.8 2.0 5.5 2.9-3.6 2.1-2.2 1000
20019 GRHR2056 SRHR-2056 PA46 UL94V2 Tan 4.2 1.2 5.6 2.0 7.2 3.7-4.4 2.1-2.2 1000
20023 GRHR2064 SRHR-2064 PA46 UL94V2 Tan 4.2 1.2 6.4 2.0 7.2 4.4-5.2 2.1-2.2 1000
20027 GRHR2632 SRHR-2632 PA46 UL94V2 Tan 5.0 1.4 3.2 2.6 4.6 1.0-2.0 2.7-2.8 1000
20035 GRHR2642 SRHR-2642 PA46 UL94V2 Tan 5.0 1.4 4.2 2.6 4.6 2.0-3.0 2.7-2.8 1000
20040 GRHR2648 SRHR-2648 PA46 UL94V2 Tan 5.0 1.4 4.8 2.6 6.2 2.7-3.6 2.7-2.8 1000
20044 GRHR2655 SRHR-2655 PA46 UL94V2 Tan 5.0 1.4 5.5 2.6 6.2 3.4-4.3 2.7-2.8 1000
20048 GRHR2664 SRHR-2664 PA46 UL94V2 Tan 5.0 1.4 6.4 2.6 7.8 4.3-5.2 2.7-2.8 1000
20052 GRHR2672 SRHR-2672 PA46 UL94V2 Tan 5.0 1.4 7.2 2.6 7.8 5.1-6.0 2.7-2.8 1000
20056 GRHR3035 SRHR-3035 PA46 UL94V2 Tan 6.4 1.6 3.5 3.0 5.1 1.0-2.0 3.1-3.2 1000
20061 GRHR3045 SRHR-3045 PA46 UL94V2 Tan 6.4 1.6 4.5 3.0 6.1 2.0-3.0 3.1-3.2 1000
21488 GRHR3050 SRHR-3050 PA46 UL94V2 Tan 6.4 1.6 5.0 3.0 6.1 2.5-3.5 3.1-3.2 1000
20070 GRHR3055 SRHR-3055 PA46 UL94V2 Tan 6.4 1.6 5.5 3.0 6.1 3.0-4.0 3.1-3.2 1000
20074 GRHR3065 SRHR-3065 PA46 UL94V2 Tan 6.4 1.6 6.5 3.0 7.1 4.0-5.0 3.1-3.2 1000
20082 GRHR3075 SRHR-3075 PA46 UL94V2 Tan 6.4 1.6 7.5 3.0 9.0 5.0-6.0 3.1-3.2 1000
20095 GRHR3080 SRHR-3080 PA46 UL94V2 Tan 6.4 1.6 8.0 3.0 9.0 5.5-6.5 3.1-3.2 1000
20103 GRHR3090 SRHR-3090 PA46 UL94V2 Tan 6.4 1.6 9.0 3.0 11.0 6.5-7.5 3.1-3.2 1000
20107 GRHR3100 SRHR-3100 PA46 UL94V2 Tan 6.4 1.6 10.0 3.0 11.0 7.5-8.5 3.1-3.2 1000
21640 GRHR3145 - PA46 UL94V2 Tan 6.4 1.6 14.5 3.0 15.5 11.5-13.0 3.1-3.2 1000
20112 GRHR3230 - PA46 UL94V2 Tan 6.4 1.6 23.0 3.0 24.0 20.5-21.5 3.1-3.2 1000
