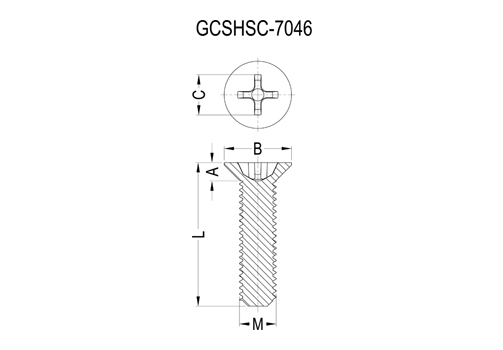

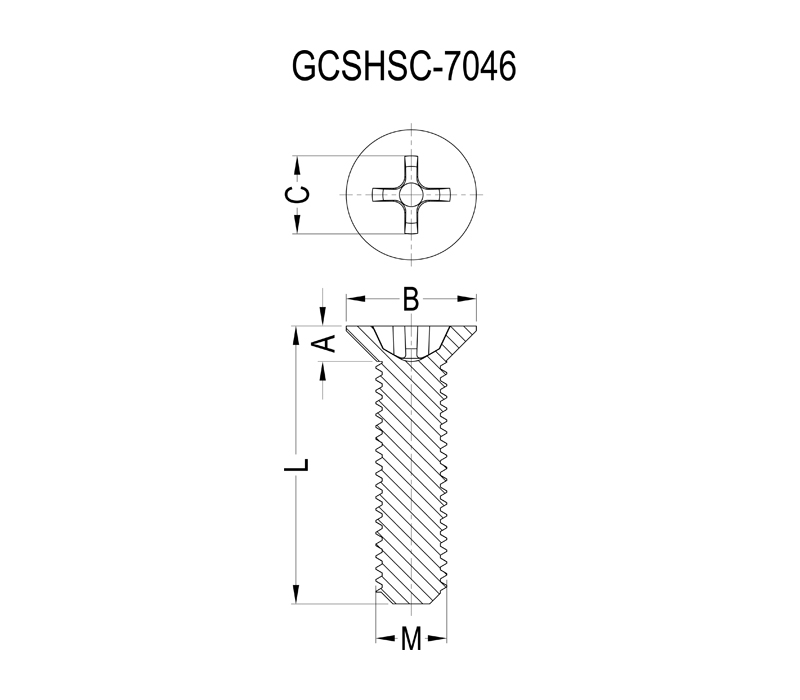

GCSHSC-7046
Countersunk Machine Screw, Crossed, M2, M2.5, M3, M4, M5, M6
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A | B | C |
L |
Thread |
Packing Unit |
PDF |
3D |
| 50944 | GCSHSC-7046-M2-5 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
5.0 |
M2 |
1000 |
|
|
| 50945 | GCSHSC-7046-M2-6 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
6.0 |
M2 |
1000 |
|
|
| 50946 | GCSHSC-7046-M2-8 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
8.0 |
M2 |
1000 |
|
|
| 50947 | GCSHSC-7046-M2-10 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
10.0 |
M2 |
1000 |
|
|
| 50948 | GCSHSC-7046-M2-12 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
12.0 |
M2 |
1000 |
|
|
| 50949 | GCSHSC-7046-M2-16 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
16.0 |
M2 |
1000 |
|
|
| 50950 | GCSHSC-7046-M2-20 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
20.0 |
M2 |
1000 |
|
|
| 50951 | GCSHSC-7046-M2-25 |
- |
PA66 UL94V2 |
Natural |
1.2 | 3.8 | 1.9 |
25.0 |
M2 |
1000 |
|
|
| 50952 | GCSHSC-7046-M2.5-5 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
5.0 |
M2.5 |
1000 |
|
|
| 50953 | GCSHSC-7046-M2.5-6 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
6.0 |
M2.5 |
1000 |
|
|
| 50954 | GCSHSC-7046-M2.5-8 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
8.0 |
M2.5 |
1000 |
|
|
| 50955 | GCSHSC-7046-M2.5-10 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
10.0 |
M2.5 |
1000 |
|
|
| 50956 | GCSHSC-7046-M2.5-12 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
12.0 |
M2.5 |
1000 |
|
|
| 50957 | GCSHSC-7046-M2.5-16 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
16.0 |
M2.5 |
1000 |
|
|
| 50958 | GCSHSC-7046-M2.5-20 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
20.0 |
M2.5 |
1000 |
|
|
| 50959 | GCSHSC-7046-M2.5-25 |
- |
PA66 UL94V2 |
Natural |
1.5 | 4.7 | 2.7 |
25.0 |
M2.5 |
1000 |
|
|
| 50244 | GCSHSC-7046-M3-5 |
50M030050I005 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
5.0 |
M3 |
1000 |
|
|
| 50245 | GCSHSC-7046-M3-6 |
50M030050I006 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
6.0 |
M3 |
1000 |
|
|
| 50246 | GCSHSC-7046-M3-8 |
50M030050I008 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
8.0 |
M3 |
1000 |
|
|
| 50247 | GCSHSC-7046-M3-10 |
50M030050I010 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
10.0 |
M3 |
1000 |
|
|
| 50248 | GCSHSC-7046-M3-12 |
50M030050I012 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
12.0 |
M3 |
1000 |
|
|
| 50249 | GCSHSC-7046-M3-16 |
50M030050I016 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
16.0 |
M3 |
1000 |
|
|
| 50250 | GCSHSC-7046-M3-20 |
50M030050I020 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
20.0 |
M3 |
1000 |
|
|
| 50251 | GCSHSC-7046-M3-25 |
50M030050I025 |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
25.0 |
M3 |
1000 |
|
|
| 50252 | GCSHSC-7046-M3-30 |
- |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
30.0 |
M3 |
1000 |
|
|
| 50253 | GCSHSC-7046-M3-42 |
- |
PA66 UL94V2 |
Natural |
1.65 | 5.5 | 2.9 |
42.0 |
M3 |
1000 |
|
|
| 50282 | GCSHSC-7046-M4-6 |
50M040070I006 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
6.0 |
M4 |
1000 |
|
|
| 50283 | GCSHSC-7046-M4-8 |
50M040070I008 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
8.0 |
M4 |
1000 |
|
|
| 50284 | GCSHSC-7046-M4-10 |
50M040070I010 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
10.0 |
M4 |
1000 |
|
|
| 50285 | GCSHSC-7046-M4-12 |
50M040070I012 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
12.0 |
M4 |
1000 |
|
|
| 50286 | GCSHSC-7046-M4-15 |
- |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
15.0 |
M4 |
1000 |
|
|
| 50287 | GCSHSC-7046-M4-16 |
50M040070I016 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
16.0 |
M4 |
1000 |
|
|
| 50288 | GCSHSC-7046-M4-20 |
50M040070I020 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
20.0 |
M4 |
1000 |
|
|
| 50289 | GCSHSC-7046-M4-25 |
50M040070I025 |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
25.0 |
M4 |
1000 |
|
|
| 50290 | GCSHSC-7046-M4-30 |
- |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
30.0 |
M4 |
1000 |
|
|
| 50291 | GCSHSC-7046-M4-35 |
- |
PA66 UL94V2 |
Natural |
2.7 | 8.4 | 4.6 |
35.0 |
M4 |
1000 |
|
|
| 50653 | GCSHSC-7046-M5-6 |
- |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
6.0 |
M5 |
1000 |
|
|
| 50322 | GCSHSC-7046-M5-7 |
- |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
7.0 |
M5 |
1000 |
|
|
| 50323 | GCSHSC-7046-M5-8 |
50M050080I008 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
8.0 |
M5 |
1000 |
|
|
| 50324 | GCSHSC-7046-M5-10 |
50M050080I010 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
10.0 |
M5 |
1000 |
|
|
| 50325 | GCSHSC-7046-M5-12 |
50M050080I012 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
12.0 |
M5 |
1000 |
|
|
| 50326 | GCSHSC-7046-M5-15 |
- |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
15.0 |
M5 |
1000 |
|
|
| 50327 | GCSHSC-7046-M5-16 |
50M050080I016 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
16.0 |
M5 |
1000 |
|
|
| 50328 | GCSHSC-7046-M5-18 |
- |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
18.0 |
M5 |
1000 |
|
|
| 50329 | GCSHSC-7046-M5-20 |
50M050080I020 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
20.0 |
M5 |
1000 |
|
|
| 50330 | GCSHSC-7046-M5-25 |
50M050080I025 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
25.0 |
M5 |
1000 |
|
|
| 50331 | GCSHSC-7046-M5-30 |
50M050080I030 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
30.0 |
M5 |
1000 |
|
|
| 50332 | GCSHSC-7046-M5-35 |
- |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
35.0 |
M5 |
1000 |
|
|
| 50333 | GCSHSC-7046-M5-40 |
50M050080I040 |
PA66 UL94V2 |
Natural |
2.7 | 9.0 | 4.8 |
40.0 |
M5 |
1000 |
|
|
| 50366 | GCSHSC-7046-M6-8 |
50M060100I008 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
8.0 |
M6 |
1000 |
|
|
| 50367 | GCSHSC-7046-M6-10 |
50M060100I010 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
10.0 |
M6 |
1000 |
|
|
| 50368 | GCSHSC-7046-M6-12 |
50M060100I012 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
12.0 |
M6 |
1000 |
|
|
| 50369 | GCSHSC-7046-M6-15 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
15.0 |
M6 |
1000 |
|
|
| 50370 | GCSHSC-7046-M6-16 |
50M060100I016 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
16.0 |
M6 |
1000 |
|
|
| 50371 | GCSHSC-7046-M6-20 |
50M060100I020 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
20.0 |
M6 |
1000 |
|
|
| 50372 | GCSHSC-7046-M6-22 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
22.0 |
M6 |
1000 |
|
|
| 50373 | GCSHSC-7046-M6-25 |
50M060100I025 |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
25.0 |
M6 |
1000 |
|
|
| 50374 | GCSHSC-7046-M6-30 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
30.0 |
M6 |
1000 |
|
|
| 50375 | GCSHSC-7046-M6-40 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
40.0 |
M6 |
1000 |
|
|
| 50376 | GCSHSC-7046-M6-50 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
50.0 |
M6 |
1000 |
|
|
| 50377 | GCSHSC-7046-M6-60 |
- |
PA66 UL94V2 |
Natural |
3.3 | 11.0 | 6.6 |
60.0 |
M6 |
1000 |
|
|
