GHURCBH

Cable Clamp, Wire Saddle, Wire Harness Clip, Half-U-Clamp, Half-U, Fir Tree, PA66 UL94V2, PA66 UL94V0

Back to

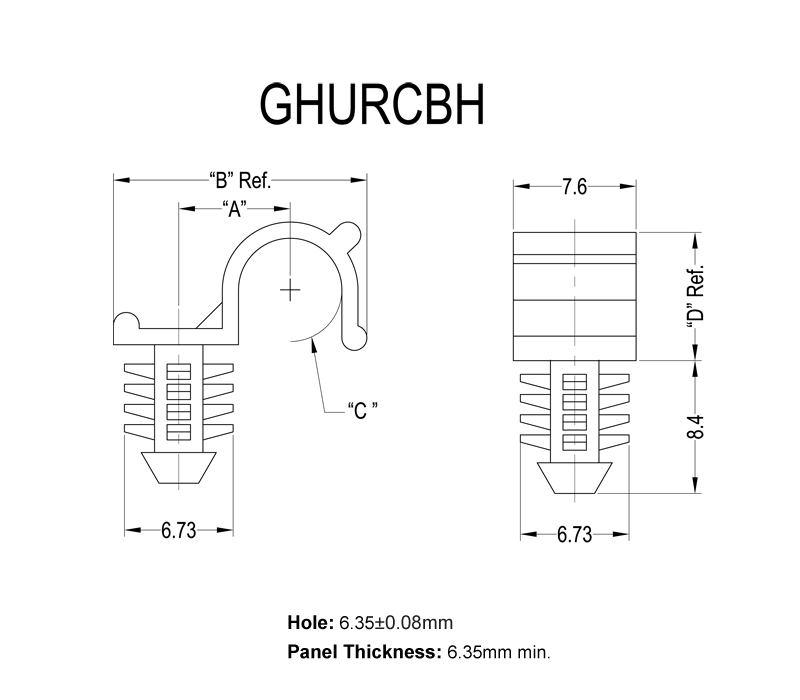

Sizes in mm
  • kabelklemme-clamp-hurcbh-2-01.jpg
  • GHURCBH 2D 503X350.jpg
P/N. Article No. Cross-Ref. Material Color A B C D Hole Panel Thickness Packing Unit PDF 3D
61213 GHURCBH-2-01 HURCBH-2-01 PA66 UL94V2 Natural 5.1 12.4 3.2 4.3 6,35 +/- 0.08 6,35 (min) 1000
61216 GHURCBH-2-19 HURCBH-2-19 PA66 UL94V0 Natural 5.1 12.4 3.2 4.3 6,35 +/- 0.08 6,35 (min) 1000
61214 GHURCBH-3-01 HURCBH-3-01 PA66 UL94V2 Natural 6.1 14.2 4.8 6.1 6,35 +/- 0.08 6,35 (min) 1000
61217 GHURCBH-3-19 HURCBH-3-19 PA66 UL94V0 Natural 6.1 14.2 4.8 6.1 6,35 +/- 0.08 6,35 (min) 1000
61215 GHURCBH-4-01 HURCBH-4-01 PA66 UL94V2 Natural 6.9 15.7 6.4 7.6 6,35 +/- 0.08 6,35 (min) 1000
61218 GHURCBH-4-19 HURCBH-4-19 PA66 UL94V0 Natural 6.9 15.7 6.4 7.6 6,35 +/- 0.08 6,35 (min) 1000
