PCB Support - Spacer - Locking Arrowhead

Back to
Sizes in mm

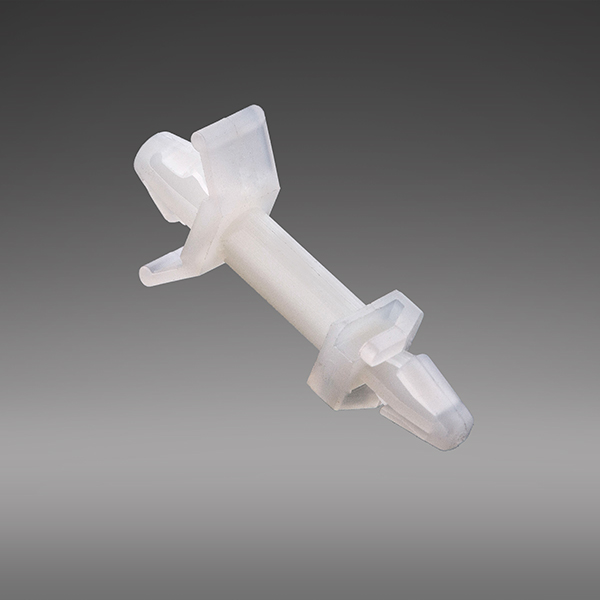

  • spacer-locking-arrowhead-5.jpg

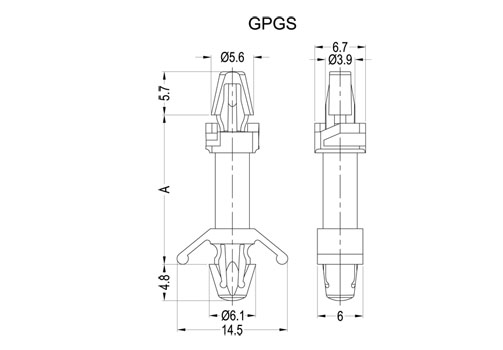

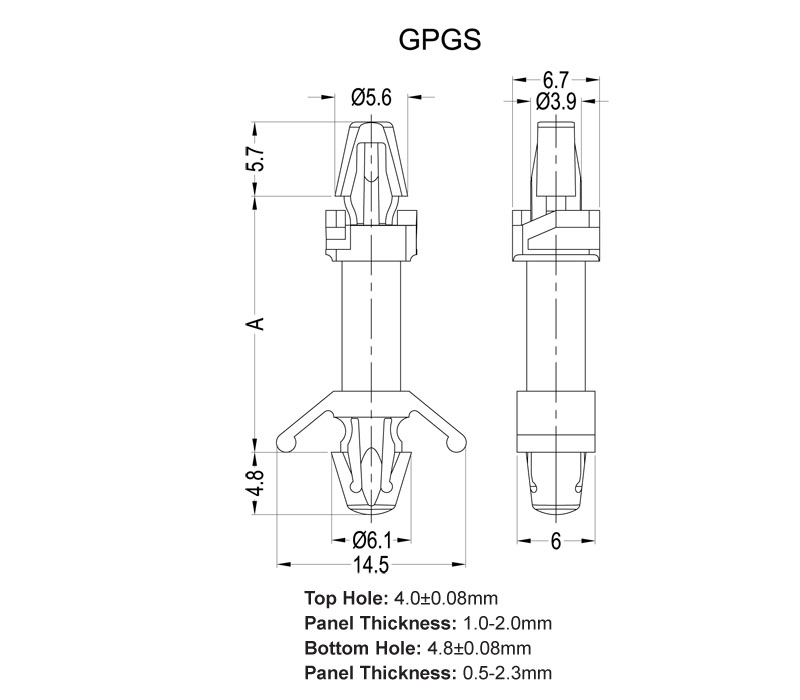

  • GPGS 2D 503X350.jpg
P/N. Article No. Material Color A Top Hole Bottom Hole Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
41533 GPGS-3 PA66 UL94V2 Natural 9.7 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41534 GPGS-4 PA66 UL94V2 Natural 11.4 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41535 GPGS-6 PA66 UL94V2 Natural 14.4 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41536 GPGS-8 PA66 UL94V2 Natural 17.7 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41537 GPGS-10 PA66 UL94V2 Natural 20.9 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41538 GPGS-12 PA66 UL94V2 Natural 24.1 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41539 GPGS-14 PA66 UL94V2 Natural 27.2 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41540 GPGS-16 PA66 UL94V2 Natural 30.4 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41541 GPGS-18 PA66 UL94V2 Natural 33.6 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
41542 GPGS-22 PA66 UL94V2 Natural 39.9 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
42223 GPGS-26 PA66 UL94V2 Natural 53.3 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 1000
43168 GPGS-54 PA66 UL94V2 Natural 91.5 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 500
43169 GPGS-62 PA66 UL94V2 Natural 101.5 4.0 +/- 0.08 4.8 +/- 0.08 1.0-2.0 0.5-2.3 500
